TCL 10,000 BTU Q-Series Portable Inverter Air Conditioner

1. پیژندنه

This manual provides essential information for the safe and efficient operation of your TCL 10,000 BTU Q-Series Portable Inverter Air Conditioner. Please read all instructions carefully before installation and use. This unit is designed to provide cooling, dehumidification, and fan-only operation for spaces up to 450 square feet.

Key features include a RapidComfort+ dual-hose design for efficient cooling, AI Inverter technology for up to 47% energy savings and precise temperature control (±1°F), and ultra-quiet operation as low as 42dB. The unit offers 3-in-1 functionality (air conditioner, fan, and dehumidifier) and can be controlled via the TCL mobile app, voice commands, or the included remote control.

2. د خوندیتوب معلومات

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is for indoor use only. Do not operate the unit with a damaged power cord or plug. Ensure the power outlet is properly grounded. Do not block air inlets or outlets. Keep children and pets away from the unit. Disconnect power before cleaning or servicing.

3. د بسته محتويات

• TCL 10,000 BTU Q-Series Portable Inverter Air Conditioner Unit
• ریموټ کنټرول
• Window Installation Kit (adjustable panels for windows up to 59 inches)
• Dual Exhaust Hoses
• د کارن لارښود
• د تضمین کارت

4. محصول ختم شوview

The TCL Q-Series Portable AC features a compact design with integrated controls and a digital display on the top panel. Air outlets are located at the front, and the dual hose connections are at the rear for efficient air exchange.

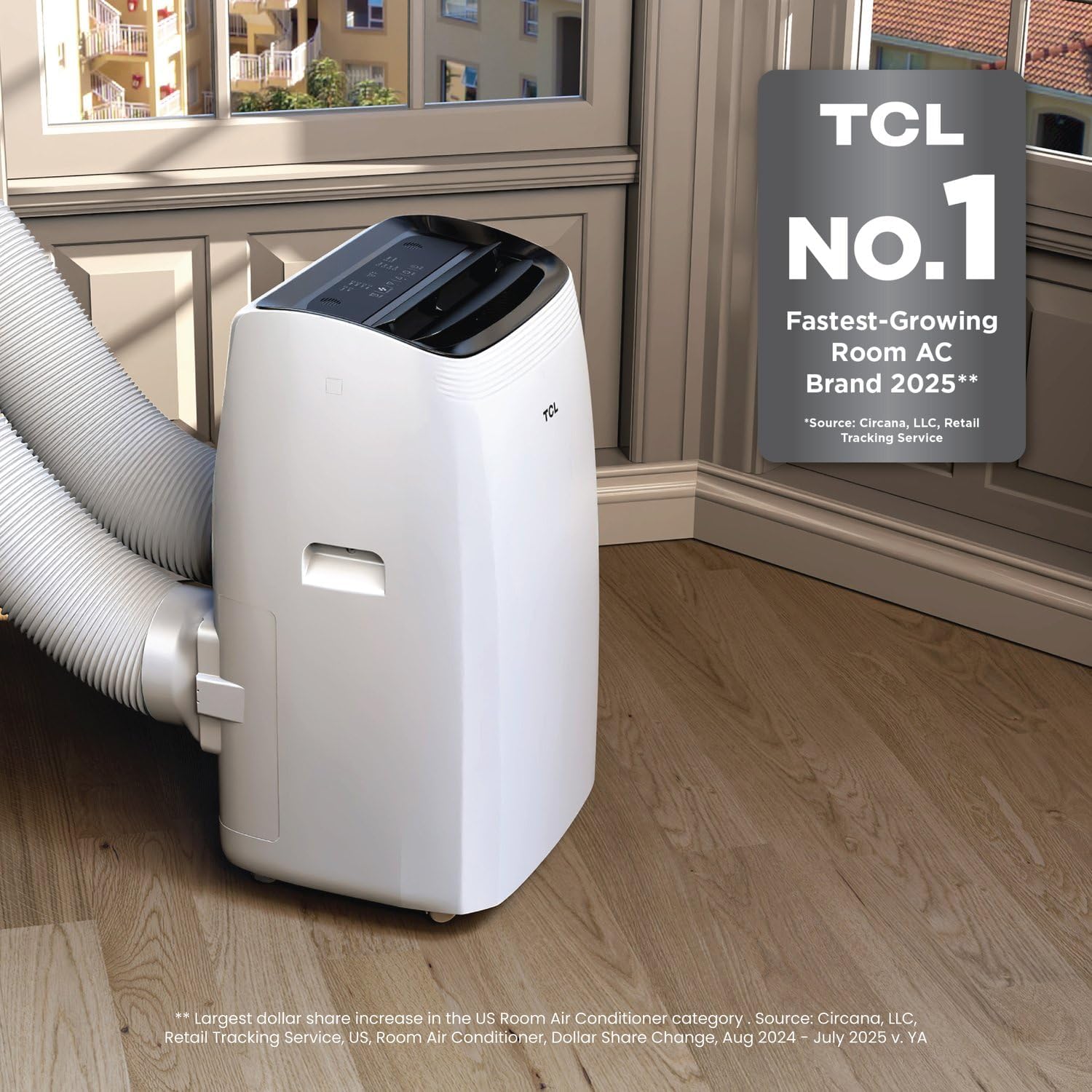

شکل 1: مخکی view of the TCL Portable AC unit with dual hoses connected.

Figure 2: Dimensions of the compact TCL Portable AC unit (14.06 x 16.5 x 27.09 inches).

۱. تنظیم او نصب کول

Proper installation is crucial for optimal performance. The dual-hose system requires venting to the outside.

۳.۲ د کړکۍ کټ نصبول

1. Measure your window opening. The window kit is adjustable for openings up to 59 inches.
2. Assemble the window panel kit by sliding the adjustable panels together to fit your window width or height.
3. Secure the assembled window panel in your window opening, ensuring a tight seal to prevent air leakage.

5.2 د نلی پیوستون

1. Attach one end of each dual exhaust hose to the corresponding ports on the rear of the AC unit. Ensure they are securely fastened.
2. Attach the other end of the dual exhaust hoses to the openings in the installed window panel. Verify a secure connection to prevent air leakage.

Figure 3: TCL Portable AC unit with dual hoses properly connected to the window kit.

5.3 د بریښنا نښلول

Plug the power cord into a grounded 115 Volt electrical outlet. Ensure the outlet meets the unit's power requirements (1030 watts).

6. عملیاتي لارښوونې

Your TCL Portable AC offers multiple operating modes and control options.

6.1 د کنټرول پینل

The control panel is located on the top of the unit. It includes buttons for Power, Mode (Cool, Dry, Fan), Fan Speed (High, Low), and Temperature Adjustment (+/-).

شکل 4: پایview of the control panel and key features of the TCL Portable AC.

6.2 ریموٹ کنټرول

The included remote control provides full functionality from a distance. Ensure batteries are installed (not included, requires 2x AAA batteries).

۳.۳ سمارټ کنټرول (وای فای فعال شوی)

Download the TCL Home app to control your AC unit from your smartphone. The unit is also compatible with voice commands via smart home devices like Alexa and Google Home.

Figure 5: Control your TCL Portable AC using the mobile app or voice commands.

6.4 عملیاتي طریقې

• سوړ حالت: Provides powerful cooling for your space. Set your desired temperature using the +/- buttons.
• وچ حالت (د رطوبت کمولو وسیله): له هوا څخه اضافي رطوبت لرې کوي.
• د فین حالت: پرته له یخولو هوا خپروي. د فین سرعت د غوښتنې سره سم تنظیم کړئ.

7. ساتنه

منظم ساتنه ستاسو د واحد غوره فعالیت او اوږد عمر تضمینوي.

7.1 د فلټر پاکول

Clean the air filter every two weeks or more frequently depending on usage. A dirty filter can reduce cooling efficiency.

1. واحد بند کړئ او د بریښنا له سایټ څخه یې خلاص کړئ.
2. د واحد له شا څخه د هوا فلټر لرې کړئ.
3. فلټر په ګرمو او صابون اوبو سره ومینځئ. په ښه توګه یې ومینځئ.
4. فلټر ته اجازه ورکړئ چې په بشپړه توګه په هوا کې وچ شي مخکې لدې چې دا په واحد کې بیا دننه شي.

7.2 د اوبو ویستل

The unit has a self-evaporating system, but in high humidity conditions, the internal water tank may fill up. If the tank is full, the unit will stop operating and display an error code.

1. واحد وتړئ او خلاص یې کړئ.
2. د واحد په ښکته شا کې د اوبو ایستلو بندر لاندې یو کم سطحي پین یا ټری ځای په ځای کړئ.
3. د اوبو د بهېدو لپاره د اوبو د ایستلو پلګ لرې کړئ.
4. کله چې وچ شي، د اوبو ایستلو پلګ په خوندي ډول بدل کړئ.

8. ستونزه حل کول

If your unit is not operating correctly, refer to the following common issues before contacting support.

• واحد نه فعالیږي: Check power cord connection, ensure outlet is working, check circuit breaker.
• واحد یخ نه دی: Ensure doors/windows are closed, check air filter for cleanliness, verify exhaust hoses are properly installed and not blocked, confirm correct mode and temperature settings.
• واحد شور دی: Ensure unit is on a flat, stable surface. Check for any obstructions in the fan or air vents.
• د اوبو جریان: Check drain plug for secure fit. Ensure unit is level.

9. مشخصات

10. تضمین او ملاتړ

Your TCL Portable Inverter Air Conditioner comes with a 1-year limited warranty. For warranty claims, technical support, or service inquiries, please refer to the contact information provided on your warranty card or visit the official TCL support webسایټ
