VSTARCAM Outdoor Security Dual Lens Camera CS663DR User Manual

1. پیژندنه

Thank you for choosing the VSTARCAM Outdoor Security Dual Lens Camera CS663DR. This manual provides detailed instructions for the installation, operation, and maintenance of your new security camera. Designed for comprehensive outdoor surveillance, this camera features dual lenses, 3MP resolution, AI auto-tracking, two-way audio, and robust IP66 weather protection, ensuring reliable monitoring for your home or property.

۲. په بکس کې څه دي؟

• VSTARCAM Outdoor Security Dual Lens Camera
• د لارښوونې لارښود
• د سکرو نصب کول
• د بریښنا اډاپټر
• ولاړ

3. محصول ختم شوview

The VSTARCAM CS663DR camera integrates advanced features for superior surveillance. It includes a fixed wide-angle lens and a rotating PTZ (Pan-Tilt-Zoom) lens, allowing for simultaneous monitoring of different areas. The camera supports 2K HD resolution for clear image capture.

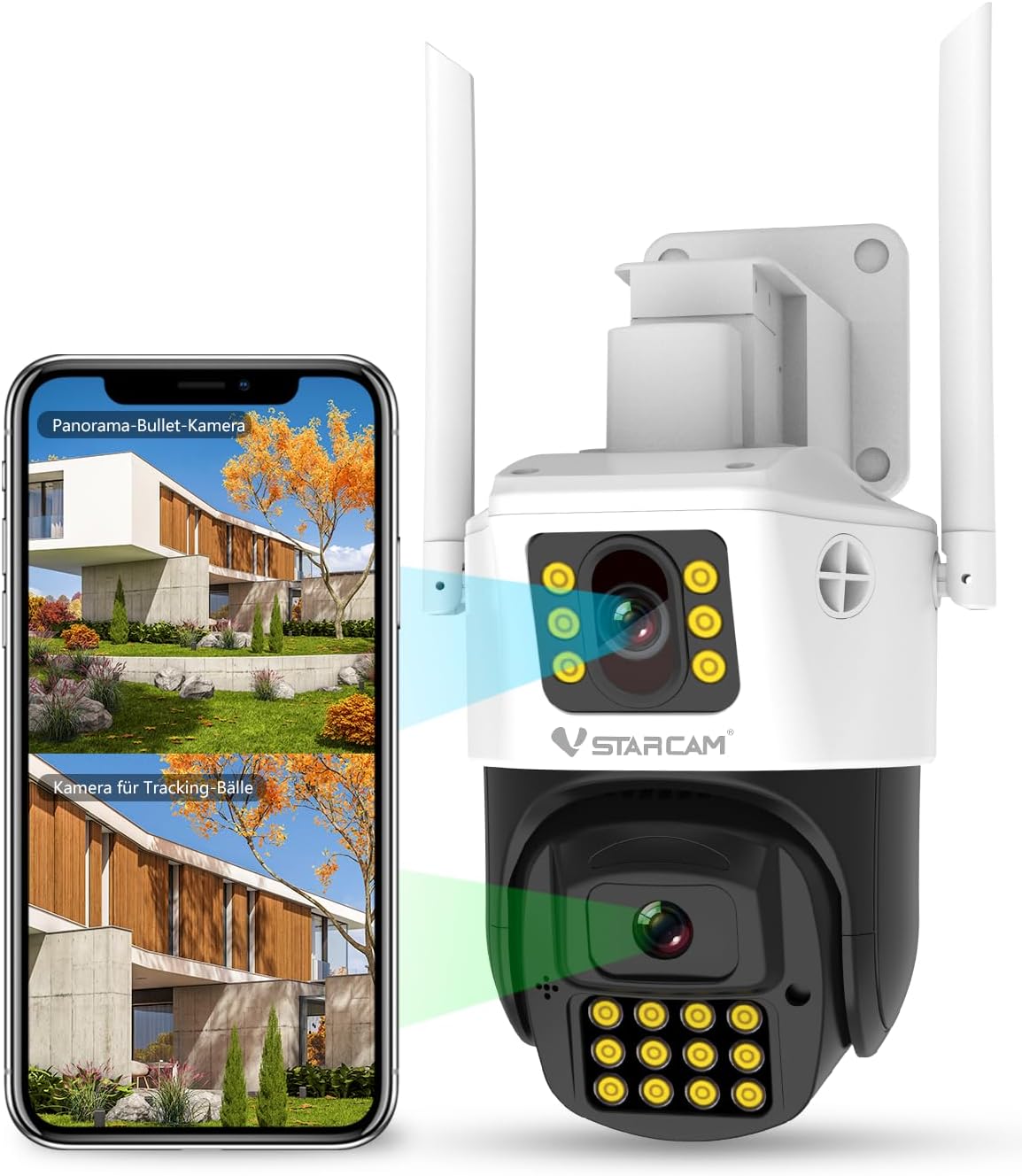

شکل 3.1: پایview of the VSTARCAM Dual Lens Camera and its mobile application interface.

Figure 3.2: The camera captures clear 2K HD resolution, suitable for monitoring outdoor activities.

۴. د تنظیم لارښوونې

4.1. په بریښنا چالانول

1. چمتو شوی بریښنا اډاپټر د کیمرې د بریښنا ان پټ پورټ سره وصل کړئ.
2. Plug the power adapter into a standard electrical outlet. The camera will initiate its startup sequence.

4.2. د اپلیکیشن نصب کول

1. Download the VSTARCAM mobile application from your device's app store (available for Android and iOS).
2. د نوي حساب لپاره راجستر کړئ یا که تاسو دمخه یو حساب لرئ نو ننوتل وکړئ.

4.3. د وین فای اتصال

1. ډاډ ترلاسه کړئ چې ستاسو د وای فای شبکه 2.4 GHz ده. Note: 5 GHz Wi-Fi networks are not supported.
2. Follow the in-app instructions to add your camera and connect it to your Wi-Fi network. This typically involves scanning a QR code on the camera or using an audio pairing method.

4.4. د کیمرې نصب کول

The camera supports both wall and ceiling mounting. Choose a location that provides optimal coverage and a stable Wi-Fi signal.

1. Use the included mounting screws and stand to securely attach the camera to your desired surface.
2. Ensure the camera is positioned to cover the intended surveillance area.

Figure 4.1: Illustration of the camera's mounting options, power connection, and 2.4 GHz Wi-Fi compatibility. The camera offers 350° pan and 90° tilt capabilities.

5. عملیاتي لارښوونې

5.1. Dual-Lens View او PTZ کنټرول

The VSTARCAM CS663DR features two lenses: a fixed lens and a PTZ lens. You can switch between views یا view both simultaneously within the app. Use the app's controls to pan the PTZ lens 350 degrees horizontally and tilt it 90 degrees vertically to adjust your viewزاویه.

Figure 5.1: Screenshot of the VSTARCAM mobile application displaying dual-lens live view او د کنټرول اختیارونه.

5.2. AI Auto Tracking

The camera is equipped with AI human detection and auto-tracking. When a human figure is detected within the camera's field of view, the PTZ lens will automatically track their movement, ensuring continuous surveillance of the subject.

Figure 5.2: Demonstration of the camera's AI human detection and auto-tracking capabilities in an outdoor setting.

۳.۳. د حرکت کشف او خبرتیاوې

Configure motion detection settings in the app to receive instant notifications on your smartphone when activity is detected. You can customize detection zones and sensitivity levels to minimize false alarms.

۵. دوه اړخیزه خبرې اترې

Utilize the built-in microphone and speaker for two-way communication. This feature allows you to speak to visitors or deter unwanted intruders directly through the camera via the mobile app.

5.5. د شپې لید

The camera offers both full-color night vision and infrared (IR) night vision modes. The 18 built-in lights enable clear visibility up to 30 meters in low-light conditions. The spotlight can be triggered by motion or controlled manually.

Figure 5.3: Comparison of full-color night vision and infrared (IR) night vision modes, providing optimal visibility in all lighting conditions.

5.6. د ذخیره کولو اختیارونه

The VSTARCAM CS663DR supports local storage via a Micro SD card (up to 256 GB, not included) and cloud storage services. You can access recorded footage and live streams anytime, anywhere, through the mobile app or a computer.

6. ساتنه

• د لینزونو پاکول: Regularly wipe the camera lenses with a soft, dry cloth to ensure clear image quality. Avoid abrasive cleaners.
• د بریښنا پیوستون: Periodically check that the power adapter is securely connected and free from damage.
• د وای فای سیګنال: Ensure the camera maintains a strong 2.4 GHz Wi-Fi signal for optimal performance.
• د فرم ویئر تازه معلومات: Check the VSTARCAM app for available firmware updates to ensure your camera has the latest features and security enhancements.

7. ستونزه حل کول

• کیمره له وای فای سره نه نښلي: Ensure your Wi-Fi is 2.4 GHz. Verify the Wi-Fi password. Move the camera closer to the router. Restart the camera and router.
• د انځور کمزوری کیفیت: Clean the camera lenses. Check your internet connection speed. Ensure the camera is within optimal Wi-Fi range.
• د حرکت کشف کار نه کوي: Verify motion detection settings in the app. Adjust sensitivity and detection zones. Ensure the camera's view خنډ نه دی.
• Two-way talk issues: په خپل تلیفون کې د اپلیکیشن لپاره د مایکروفون او سپیکر اجازه وګورئ. ډاډ ترلاسه کړئ چې د کیمرې مایکروفون او سپیکر خنډ نه وي.
• SD کارت ونه پیژندل شو: Ensure the SD card is correctly inserted. Format the SD card through the camera settings in the app. Use a compatible Micro SD card (up to 256 GB).

8. مشخصات

The VSTARCAM CS663DR is built to withstand outdoor conditions with an IP66 waterproof rating, operating effectively in temperatures ranging from -30°C to +60°C.

Figure 8.1: The camera's IP66 rating ensures protection against water and dust, making it suitable for various weather conditions.

9. تضمین او ملاتړ

VSTARCAM products are designed for reliability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official VSTARCAM website. If you encounter any issues or require technical assistance, please contact VSTARCAM customer support for prompt and professional help.
