1. پیژندنه
The ASMAX T20 is a versatile and essential tool designed for automotive and outdoor use. It integrates a powerful 4000A peak current jump starter, a 150 PSI air compressor, a 12000mAh power bank, and an emergency LED flashlight. This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your ASMAX T20 device. Please read this manual thoroughly before first use and retain it for future reference.
2. د خوندیتوب معلومات
Always observe the following safety precautions to prevent injury or damage to the device.
- عمومي خوندیتوب: Keep the device away from children. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Store in a cool, dry place.
- Jump Starting Safety:
- Ensure correct polarity when connecting the clamps (red to positive, black to negative). Incorrect connection can cause sparks or damage.
- Wear eye protection and gloves when jump starting.
- سور او تور cl ته اجازه مه ورکوئamps to touch each other, as this can cause a short circuit.
- د کود کولو هڅه مه کوئ منجمد بیټرۍ پیل کړئ.
- Ensure the vehicle's ignition is off before connecting the jump starter.
- Air Compressor Safety:
- Do not overinflate tires or other items. Always check the recommended pressure for the item being inflated.
- Monitor the pressure gauge during inflation to avoid exceeding the maximum pressure.
- The air hose may become hot during prolonged use. Handle with care.
- د بیټرۍ خوندیتوب:
- Do not disassemble, modify, or immerse the device in water.
- Charge the device only with the provided USB-C cable.
- Avoid exposing the device to extreme temperatures (below -20°C or above 45°C).
- If the battery swells, leaks, or emits an odor, discontinue use immediately.
The ASMAX T20 incorporates 10 levels of safety protection, including spark-proof, reverse polarity, short circuit, overload, over-voltage, over-current, high/low temperature, overcharge, and reverse charge protection, ensuring safe operation.
Image: The ASMAX T20 features 10 integrated safety protections for secure operation.
3. د بسته محتويات
ډاډ ترلاسه کړئ چې ټول توکي په کڅوړه کې شتون لري:
- Arrancador con Compresor de Aire T20 (Jump Starter with Air Compressor T20)
- Válvula Schrader Extendida (Extended Schrader Valve)
- Aguja para Inflar Balones (Ball Inflation Needle)
- Válvula Schrader (Schrader Valve)
- Válvula Presta (Presta Valve)
- Cable de Carga USB-C (USB-C Charging Cable)
- Manguera de Aire Inflable (Inflatable Air Hose)
- Cable de Puente de 12V con Pinzas (12V Jumper Cable with Clamps)
- Bolsa de Almacenamiento (Storage Bag)
- Manual de Usuario (User Manual)
Image: All components included in the ASMAX T20 product box.
4. محصول ختم شوview
The ASMAX T20 features a compact design with an intuitive interface. Familiarize yourself with the device's components and controls.
Image: The ASMAX T20 device and its accessories.
۴.۱. د اصلي واحد ځانګړتیاوې
- لوی LCD نندارې: Shows real-time tire pressure, battery level, and selected modes.
- د کنټرول تڼۍ: Intuitive buttons for power, mode selection, and pressure adjustment.
- د جمپ سټارټ پورټ: Connects to the 12V jumper cables.
- د هوا نلی بندر: Connects the inflatable air hose.
- د USB-A محصول پورټ: د بهرنیو وسایلو د چارج کولو لپاره (د پاور بانک فعالیت).
- د USB-C ان پټ پورټ: For charging the ASMAX T20 device.
- LED فلش لائټ: Integrated high-intensity LED light with multiple modes.
Image: The high-definition LCD screen provides clear information.
Image: The ASMAX T20 functions as a 12000mAh power bank.
Image: The device includes a powerful LED emergency light.
5. مشخصات
| فیچر | مشخصات |
|---|---|
| اعظمي اوسني | 4000A |
| د فشار رینج | ۱-۱۸۸ PSI / ۱-۱۳ بار |
| د هوا جریان | ۵،۵ لیتره/ دقیقه |
| د عملیاتي تودوخې سلسله | -20°C ته 45°C (-4°F ته 113°F) |
| د بیټرۍ ظرفیت | 12000mAh / 44.4Wh |
| ننوتۍ جلدtage | 5V (USB-C) |
| Engine Support (Gasoline) | تر 9.0L پورې |
| Engine Support (Diesel) | تر 8.0L پورې |
| Vehicle Type Compatibility | All 12V vehicles (motorcycles, cars, SUVs, ATVs, vans, trucks, lawnmowers) |
| ابعاد | 5 x 7.1 x 9 سانتي متره |
| وزن | 700 ګرامه |
Image: Comprehensive specifications of the ASMAX T20.
6. ترتیب کول
۱. ابتدايي چارج کول
Before first use, fully charge the ASMAX T20. Connect the provided USB-C charging cable to the device's USB-C input port and a compatible 5V USB power adapter (not included). The LCD display will indicate the charging status. A full charge typically takes 3-4 hours.
7. عملیاتي لارښوونې
7.1. د موټر پیل کول
The ASMAX T20 can jump start 12V gasoline vehicles up to 9.0L and diesel vehicles up to 8.0L.
- موټر چمتو کړئ: ډاډ ترلاسه کړئ چې د موټر سوځول بند دي او د پارکینګ بریک فعال دی.
- Connect the Booster: Insert the 12V jumper cable with clamps into the jump start port on the ASMAX T20.
- د بیټرۍ سره وصل شئ: Attach the red (positive, +) clamp to the positive terminal of the vehicle's battery. Attach the black (negative, -) clamp to the negative terminal of the vehicle's battery. Ensure a secure connection.
- د موټر پیل: Once connected, the green light on the jumper cable connector will illuminate, indicating a ready state. Start the vehicle's engine. If it doesn't start immediately, wait 30 seconds before trying again. Do not crank for more than 3 seconds per attempt.
- نښلول: Once the vehicle starts, immediately disconnect the black (negative) clamp لومړی، بیا سره (مثبت) clamp. Remove the jumper cable from the ASMAX T20.
Image: Steps for instant vehicle restart using the ASMAX T20.

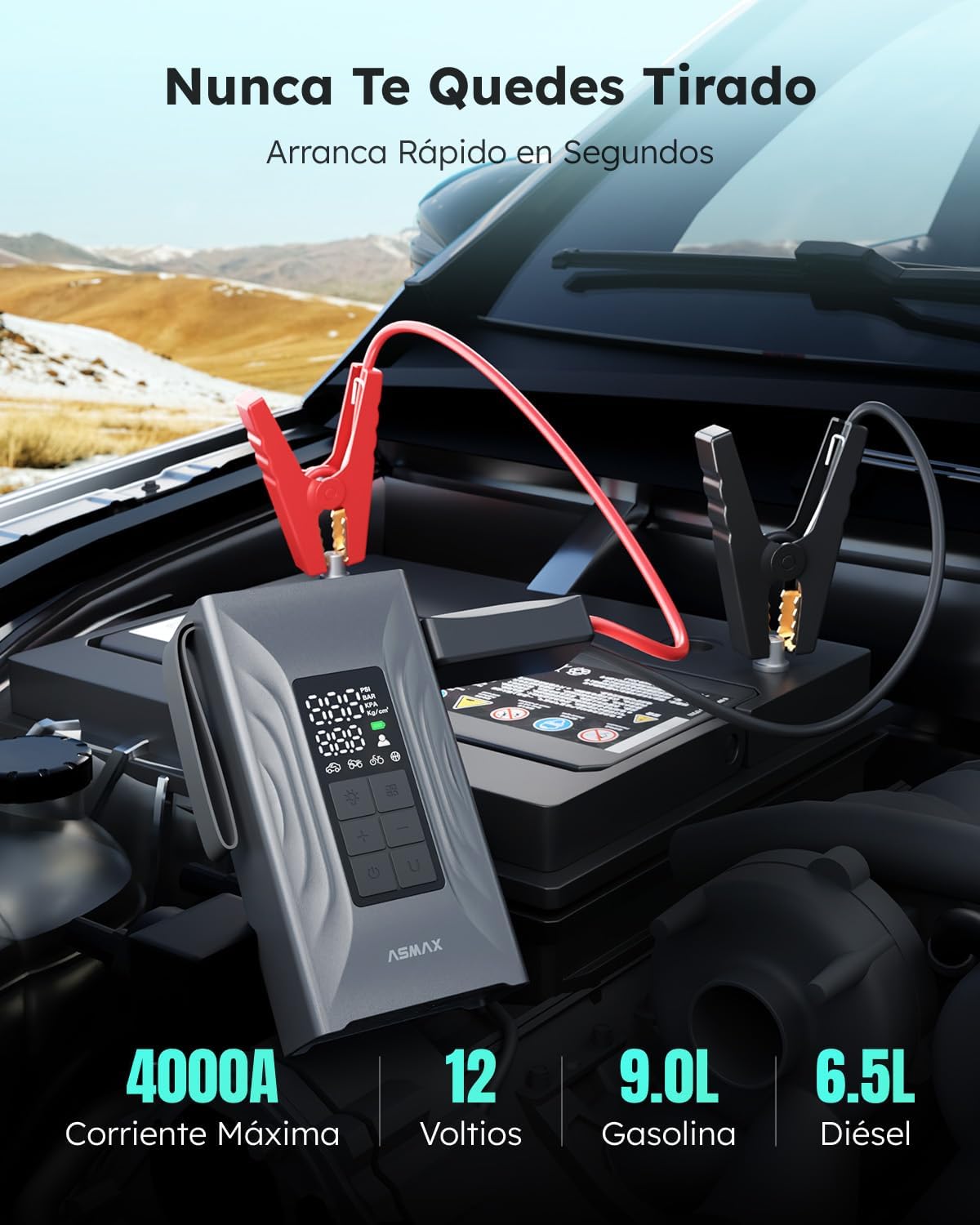

Image: Proper connection of jumper clampد موټر بیټرۍ ته.

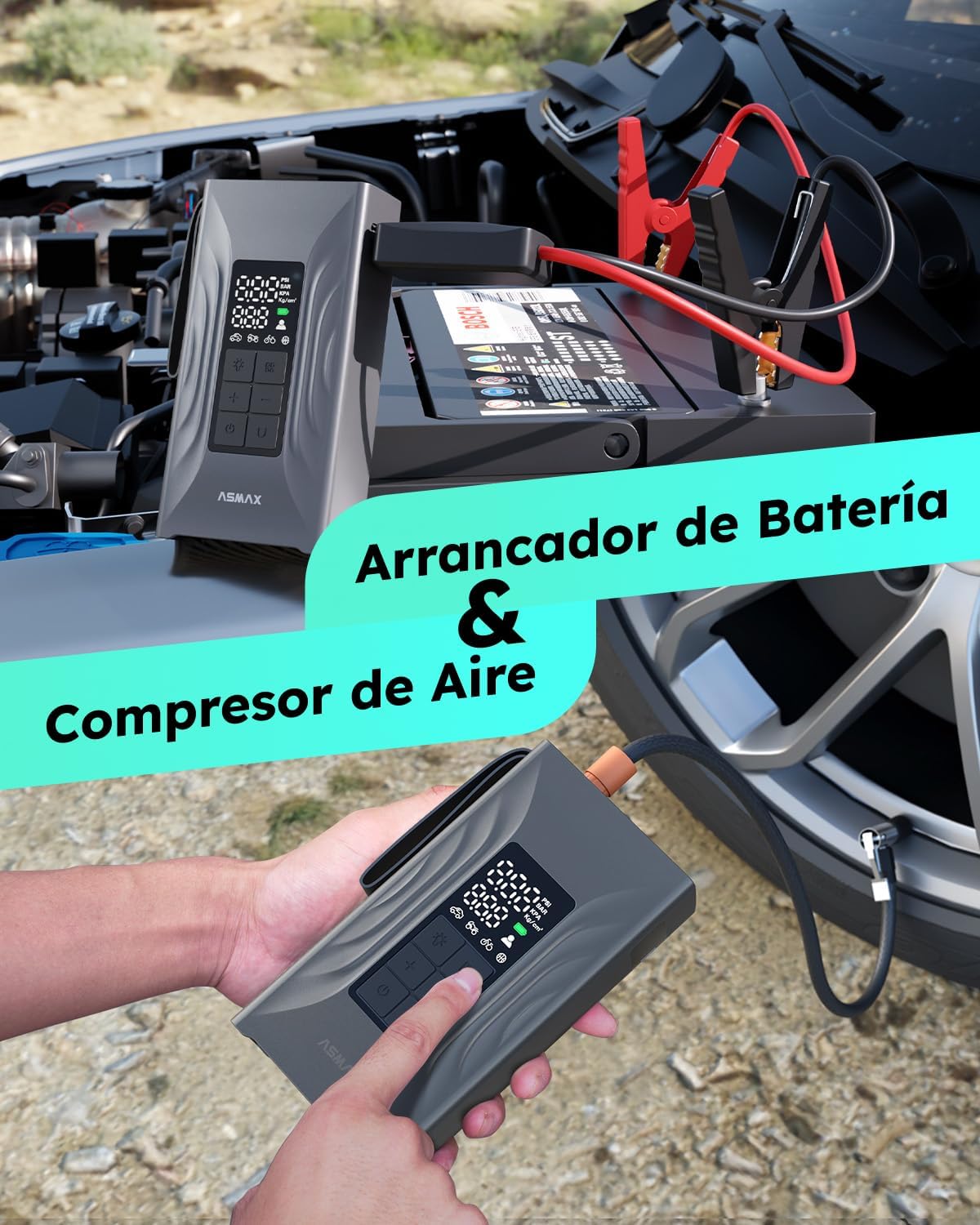

Image: The ASMAX T20 in use for both jump starting and tire inflation.
7.2. د هوا کمپرسور کارول
The 150 PSI air compressor can inflate tires, balls, and other inflatables quickly.
- نوزل وصل کړئ: Select the appropriate nozzle for your item and securely attach it to the inflatable air hose. Connect the air hose to the air hose port on the ASMAX T20.
- حالت غوره کړئ او فشار تنظیم کړئ: Turn on the device. Long press the mode button to select from 5 preset modes (balls, bicycles, motorcycles, cars, custom). Use the '+' and '-' buttons to adjust the target pressure. The LCD screen will display the current and target pressure.
- د انفلاسیون پیل: Connect the nozzle to the item to be inflated. Press the power button to start inflation. The compressor will automatically stop once the preset pressure is reached.
- نښلول: Disconnect the nozzle from the item and the air hose from the device.
Image: Steps for effortless inflation using the ASMAX T20.

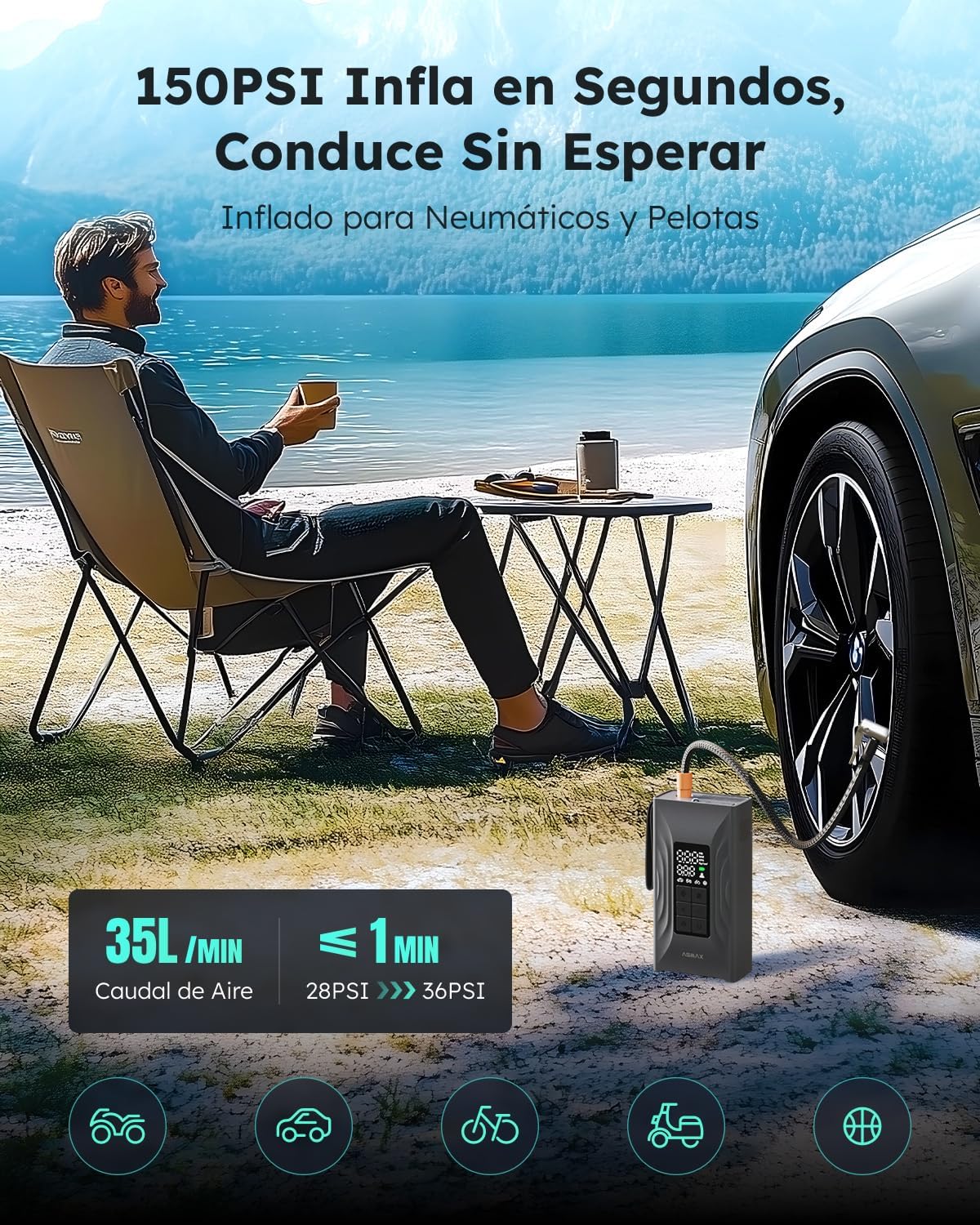

Image: The ASMAX T20 air compressor in use, inflating a tire quickly.
۶.۲. د پاور بانک په توګه کارول
The 12000mAh battery can charge mobile phones, tablets, and other USB-powered devices.
- وسیله وصل کړئ: Connect your electronic device to the USB-A output port of the ASMAX T20 using a compatible USB cable.
- چارج کول: The ASMAX T20 will automatically begin charging your device. Monitor the charging status on your device's screen.
۴. د LED فلش لائټ کارول
The integrated LED flashlight provides illumination for various situations.
- آن/بندول: Press the flashlight button to turn the light on or off.
- بدلون موډل: Press the flashlight button repeatedly to cycle through the modes: Constant Illumination, Intermittent (Strobe) Mode, and SOS Warning Mode.
8. ساتنه
Proper maintenance ensures the longevity and optimal performance of your ASMAX T20.
- پاکول: Wipe the device with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are free of dust and debris.
- ذخیره کول: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. The ideal storage temperature range is between -20°C and 45°C.
- د بیټرۍ پاملرنه: To maintain battery health, it is recommended to fully charge the device every 3-6 months, even if not in use. Do not store the device with a completely depleted battery.
- د لوازمو پاملرنه: Keep the jumper cables, air hose, and nozzles clean and free from damage. Store them in the provided storage bag.
9. ستونزه حل کول
If you encounter issues with your ASMAX T20, refer to the following common problems and solutions:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| وسیله نه ورځي. | بیټرۍ ختمه شوې. | د USB-C کیبل په کارولو سره وسیله په بشپړ ډول چارج کړئ. |
| موټر جمپ نه کوي. | غلط clamp پیوستون Device battery too low. Vehicle battery completely dead (below 50% charge on device required). Vehicle issue not related to battery. | کل ډاډ ترلاسه کړئamps په سمه توګه وصل شوي دي (سور ته +، تور ته -). Ensure device is sufficiently charged (above 50%). For completely dead batteries, ensure device is fully charged and try again. If still no start, consult a mechanic. Check other vehicle systems. |
| د هوا کمپرسور نه پړسوب کوي. | نلی په خوندي ډول نه دی تړل شوی. Nozzle not properly attached. Target pressure not set. Device battery too low. | Ensure air hose is securely screwed into the device and nozzle. Ensure nozzle is firmly attached to the item. Set a target pressure on the display. وسیله چارج کړئ. |
| LCD display is not working. | Device is off or battery is depleted. | Press the power button to turn on. Charge the device if necessary. |
| وسیله د کارولو پرمهال ګرمیږي. | Normal operation during high load (e.g., prolonged inflation or multiple jump starts). | Allow the device to cool down before continued use. If overheating persists or is excessive, discontinue use and contact support. |
If the problem persists after attempting these solutions, please contact ASMAX customer support for assistance.
10. تضمین او ملاتړ
The ASMAX T20 is designed and manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official ASMAX website. For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact ASMAX customer service through the contact information provided on the product packaging or the official brand webسایټ
