Elitech DR-230-THE

Elitech DR-230-THE Bluetooth Hygrometer Thermometer

د لارښوونې لارښود

1. محصول ختم شوview

The Elitech DR-230-THE is a Bluetooth-enabled hygrometer and thermometer designed for precise temperature and humidity monitoring. It features a large display, extensive data storage, and smart alarm capabilities, making it suitable for various environments such as warehouses, laboratories, and cold storage facilities.

Elitech DR-230-THE Bluetooth Hygrometer Thermometer with external alarm

Figure 1: Elitech DR-230-THE device with external alarm and sensor.

2. کلیدي ځانګړتیاوې

  • 10.6-inch Jumbo Display: Provides clear visibility of temperature and humidity readings across large spaces.
  • 30,000 Data Points Storage: Robust cyclic storage capacity with automatic overwrite to ensure continuous data recording.
  • دوه ګونی چینل څارنه: Simultaneously track two zones using external sensors.
  • سمارټ خبرتیاوې: Customizable alarms including screen flashing and an optional 110dB external siren with adjustable delays.
  • د بلوتوټ ارتباط: Monitor data remotely via the Elitech iCold app (up to 147ft range).
  • Universal Power & Flexible Installation: Supports 100–240V power input with interchangeable plugs and offers wall-mounting or desktop stand options.

3. ترتیب کول

3.1 د بسته محتويات

ډاډ ترلاسه کړئ چې ټولې برخې شتون لري:

  • Elitech DR-230-THE device
  • External temperature/humidity sensor(s)
  • External alarm (optional, if included with model)
  • Power adapter with interchangeable plugs (US, EU, UK, China standards)
  • Mounting accessories (screws, wall anchors)
  • د کارونکي لارښود (دا لاسوند)

3.2 وسیلې ته ځواک ورکول

  1. د خپلې سیمې لپاره مناسب بریښنا پلګ غوره کړئ او د بریښنا اډاپټر سره یې ضمیمه کړئ.
  2. Connect the power adapter to the Power Supply Interface on the back of the DR-230-THE device.
  3. Plug the power adapter into a standard 100–240V AC outlet. The device will power on automatically.

3.3 Sensor and Alarm Connection

  1. Locate the External Sensor Interface on the back of the device. Connect the external temperature/humidity sensor(s) to these ports.
  2. If your model includes an external alarm, connect it to the External Siren Interface.
شاته view of Elitech DR-230-THE showing connection ports

Figure 2: Back panel connections including wall-mounting hole, external sensor interface, external siren interface, and power supply interface.

3.4 د نصبولو اختیارونه

The DR-230-THE offers flexible installation:

  • د ډیسکټاپ سټینډ: Utilize the integrated back bracket for stable placement on any flat surface.
  • د وال ماټینګ: Use the wall-mounting hole and provided screws to secure the device to a wall. Ensure the wall can support the device's weight.

4. عملیاتي لارښوونې

4.1 ښکاره کولview

The 10.6-inch display provides real-time information:

Elitech DR-230-THE 4-in-1 display showing temperature, humidity, date, and time

Figure 3: The 4-in-1 display shows temperature, humidity, date, and time. Device dimensions are approximately 8.5" (21.5cm) length and 6.5" (16.5cm) width.

  • CH: 2: Indicates dual-channel monitoring is active.
  • د تودوخې نښه: Displays the current temperature reading.
  • Humidity Icon: Displays the current relative humidity reading.
  • نېټه او وخت: Shows the current date and time.

۵.۶ د بلوتوث اتصال او د اپلیکیشن ادغام

The Elitech iCold app allows for remote monitoring and configuration:

  1. Download the Elitech iCold app from your smartphone's app store.
  2. ډاډ ترلاسه کړئ چې ستاسو په سمارټ فون کې بلوتوټ فعال دی.
  3. Open the Elitech iCold app and follow the on-screen instructions to connect to your DR-230-THE device.
  4. یوځل چې وصل شو ، تاسو کولی شئ view real-time graphs, configure parameters, and access automatic data recording.
Elitech iCold app interface showing data graph, real-time data, parameter configuration, and data export options

Figure 4: The Elitech iCold app provides real-time charts and instant PDF reports.

۴.۲ د معلوماتو ثبت او صادرول

The device automatically stores up to 30,000 data points. Old data is overwritten once the storage capacity is reached.

  • Through the Elitech iCold app, users can export real-time charts and instant PDF reports for data analysis and record-keeping.
Elitech DR-230-THE display showing temperature and humidity readings with '30,000 Data Points' text overlay

Figure 5: The device stores 30,000 data points, ensuring critical information is retained.

4.4 د الارم ترتیب

The DR-230-THE features customizable alarms:

  • د سکرین چمکۍ: The device screen will flash when readings exceed set thresholds.
  • External Siren: If connected, the optional 110dB external siren will activate.
  • د تنظیم وړ ځنډ: Alarm delays can be set between 3 to 10 seconds to prevent false alerts from transient fluctuations.

Alarm thresholds and delays are configured via the Elitech iCold app.

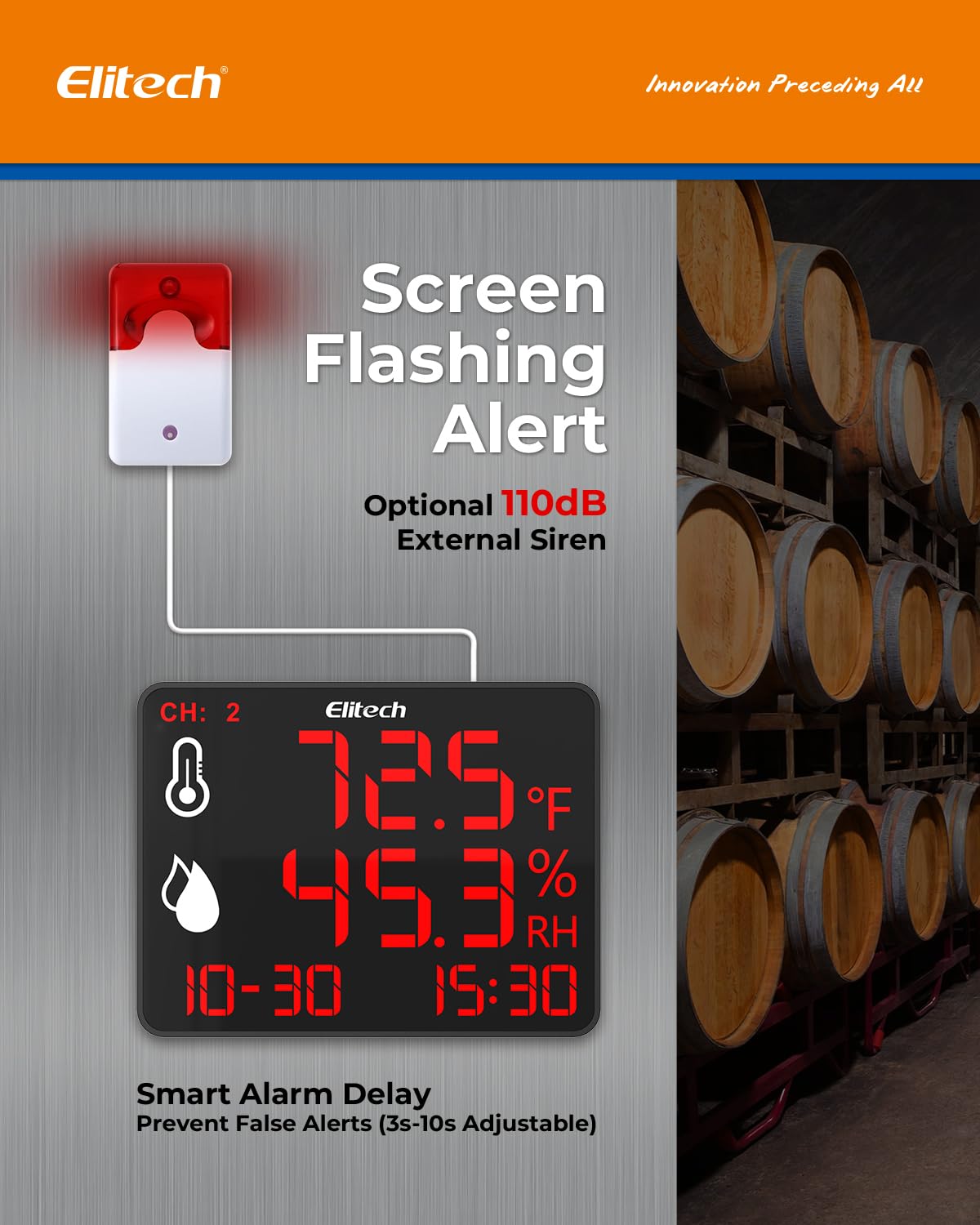

Elitech DR-230-THE with external siren in a wine cellar, illustrating screen flashing and siren alert

Figure 6: Screen flashing and optional 110dB external siren provide smart alerts with adjustable delays.

5. ساتنه

  • پاکول: Wipe the device and sensors with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
  • د سینسر پاملرنه: Keep sensors free from dust and debris to ensure accurate readings. Avoid exposing sensors to extreme physical shock or corrosive substances.
  • ذخیره کول: کله چې د اوږدې مودې لپاره نه کارول کیږي، وسیله په یخ او وچ ځای کې د مستقیم لمر وړانګو څخه لرې وساتئ.

6. ستونزه حل کول

ستونزه احتمالي لامل د حل لاره
وسیله فعاله نه ده. No power supply or faulty adapter. Check power connection. Ensure adapter is securely plugged into device and outlet. Try a different outlet.
ناسم لوستل. Sensor obstruction or damage; device placed in an unsuitable environment. Ensure sensors are clean and unobstructed. Relocate the device to a stable environment away from direct heat sources or drafts.
د بلوتوث اتصال ستونزې. Bluetooth off; device out of range; app issues. Ensure Bluetooth is enabled on your phone. Move closer to the device (within 147ft). Restart the app or your phone.
Alarm not triggering. Alarm thresholds not set correctly; alarm delay too long; external siren disconnected. Verify alarm settings in the Elitech iCold app. Check external siren connection.

7. مشخصات

  • د ښودلو اندازه: 10.6 انچه
  • د معلوماتو ذخیره کول: 30,000 data points (auto-overwrite)
  • Monitoring Channels: Dual (with external sensors)
  • د الارم ډول: Screen flashing, optional 110dB external siren
  • د الارم ځنډ: Adjustable (3–10 seconds)
  • ارتباط: بلوتوث (تر ۲۶۲ فوټو پورې واټن)
  • د بریښنا ننوتل: 100-240V AC
  • لګول: Wall-mounting, desktop stand

8. تضمین او ملاتړ

For warranty information and technical support, please refer to the official Elitech website or contact Elitech customer service directly. Keep your purchase receipt as proof of purchase.

Elitech Technology Inc.
