1. پیژندنه
The Elitech LDM-50S is a digital laser distance meter designed for accurate and efficient measurement of distances, areas, and volumes. This device is suitable for various applications including home renovation, construction, and DIY projects. It offers a range of up to 165 feet (50 meters) with high precision.
کلیدي ځانګړتیاوې:
- Fast & Highly Accurate: Measures distances up to 165ft (50m) with ±2mm precision, providing results in approximately 0.5 seconds.
- څو اړخیزې دندې: Supports single/continuous measuring, area, volume, and Pythagoras modes for indirect height or diagonal measurements.
- Easy to Read & Operate: Features a backlit screen for clear readings in dim conditions and a simple button layout for one-hand operation.
- Smart Memory & Calibration: Stores up to 99 measurements and includes a self-calibration function to maintain accuracy.
- Portable & Ready: Compact, lightweight design, supplied with batteries, a wrist strap, and a quick-start guide.
Image: Elitech LDM-50S Laser Distance Meter, showing its display and control buttons.
2. د خوندیتوب معلومات
Please read and understand all safety instructions before using the Elitech LDM-50S Laser Distance Meter. Failure to follow these instructions may result in laser radiation exposure, electric shock, fire, or serious injury.
د لیزر خوندیتوب:
- The Elitech LDM-50S uses a Class 2 laser product (630-670nm, <1mW).
- مستقیم لیزر بیم ته مه ګورئ.
- په خلکو یا څارویو کې د لیزر بیم د لارښوونې څخه ډډه وکړئ.
- د نظري وسایلو (لکه دوربین، ټیلسکوپ) څخه کار مه اخلئ ترڅو view لیزر بیم
- Ensure the device is used in a manner consistent with its intended purpose to prevent unintended exposure.
عمومي خوندیتوب:
- وسیله د ماشومانو له لاسرسي لرې وساتئ.
- د وسیلې د ترمیم یا جلا کولو هڅه مه کوئ.
- Use only specified batteries (2x AAA alkaline batteries).
- د وسیلې د خورا تودوخې ، رطوبت یا مستقیم لمر وړانګو ته د افشا کولو څخه ډډه وکړئ.
3. د بسته محتويات
Upon unpacking your Elitech LDM-50S Laser Distance Meter, please ensure all the following items are present:
- Elitech LDM-50S Laser Distance Meter
- 1.5V AAA Batteries (2 pcs)
- د کارونکي لارښود (دا لاسوند)
- د ذخیره کولو بکس
- د لاس پټه
Image: Elitech LDM-50S package contents, including the meter, batteries, user manual, box, and hand strap.
4. پیل کول
4.1 د بیټرۍ نصب کول
- د وسیلې په شا کې د بیټرۍ د برخې پوښ ومومئ.
- پوښ خلاص کړئ.
- Insert two 1.5V AAA alkaline batteries, ensuring correct polarity (+/-).
- د بیټرۍ کمپارټ پوښ په خوندي ډول وتړئ.
۸ پاور آن/بند
- د فعالولو لپاره: فشار ورکړئ لوستل تڼۍ به ښودنه روښانه کړي.
- د بریښنا بندولو لپاره: فشار ورکړئ او ونیسئ بند/پاک button for a few seconds until the display turns off. The device also features an auto shut-off function to conserve battery power after a period of inactivity.
5. عملیات
۴.۱ د واټن اساسي اندازه کول
- په فشارولو سره وسیله ته بریښنا ورکړئ لوستل تڼۍ
- فشار ورکړئ لوستل button again to activate the laser beam. A red laser dot will appear.
- Aim the laser dot at the target point from which you want to measure the distance.
- فشار ورکړئ لوستل button once more. The measured distance will be displayed on the screen.
5.2 د اندازه کولو طریقې
The LDM-50S offers several measurement modes. Press the FUNC button (often labeled with a square/triangle icon) to cycle through the available modes:
- واحد اندازه کول: د دوو نقطو ترمنځ واټن اندازه کوي.
- دوامداره اندازه کول (تعقیب): Provides real-time distance updates as you move the device.
- د ساحې اندازه کول: Measures length and width to calculate the area of a surface.
- د حجم اندازه کول: Measures length, width, and height to calculate the volume of a space.
- Pythagoras Mode: Calculates indirect measurements (e.g., height or diagonal) using the Pythagorean theorem. Follow the on-screen prompts to take the required measurements.
Image: Elitech LDM-50S illustrating various measurement modes including distance, area, volume, and Pythagorean calculations.
5.3 Setting the Measurement Reference Point
The device can measure from its front edge or its rear edge. Press the REF button (often labeled with an arrow icon) to switch between these reference points. An icon on the display will indicate the currently selected reference point.
۵.۲ د واحد بدلول
To change the measurement units (e.g., meters, feet, inches), press the UNIT button (often labeled 'U'). Continue pressing to cycle through available units: meters (m), centimeters (cm), feet (ft), inches (in), decimal inches, and fractional inches.
5.5 د معلوماتو ذخیره کول
The LDM-50S can store up to 99 measurement records. To view stored data, press the MEM button (often labeled with a document icon). Use the arrow buttons (if available) to navigate through the records.
5.6 اندازه کول
The device features a self-calibration function to ensure accuracy over time. Refer to the on-screen menu or specific button combinations (usually involving holding a button during power-on) for calibration instructions if you suspect accuracy issues. Always calibrate against a known, precise distance.

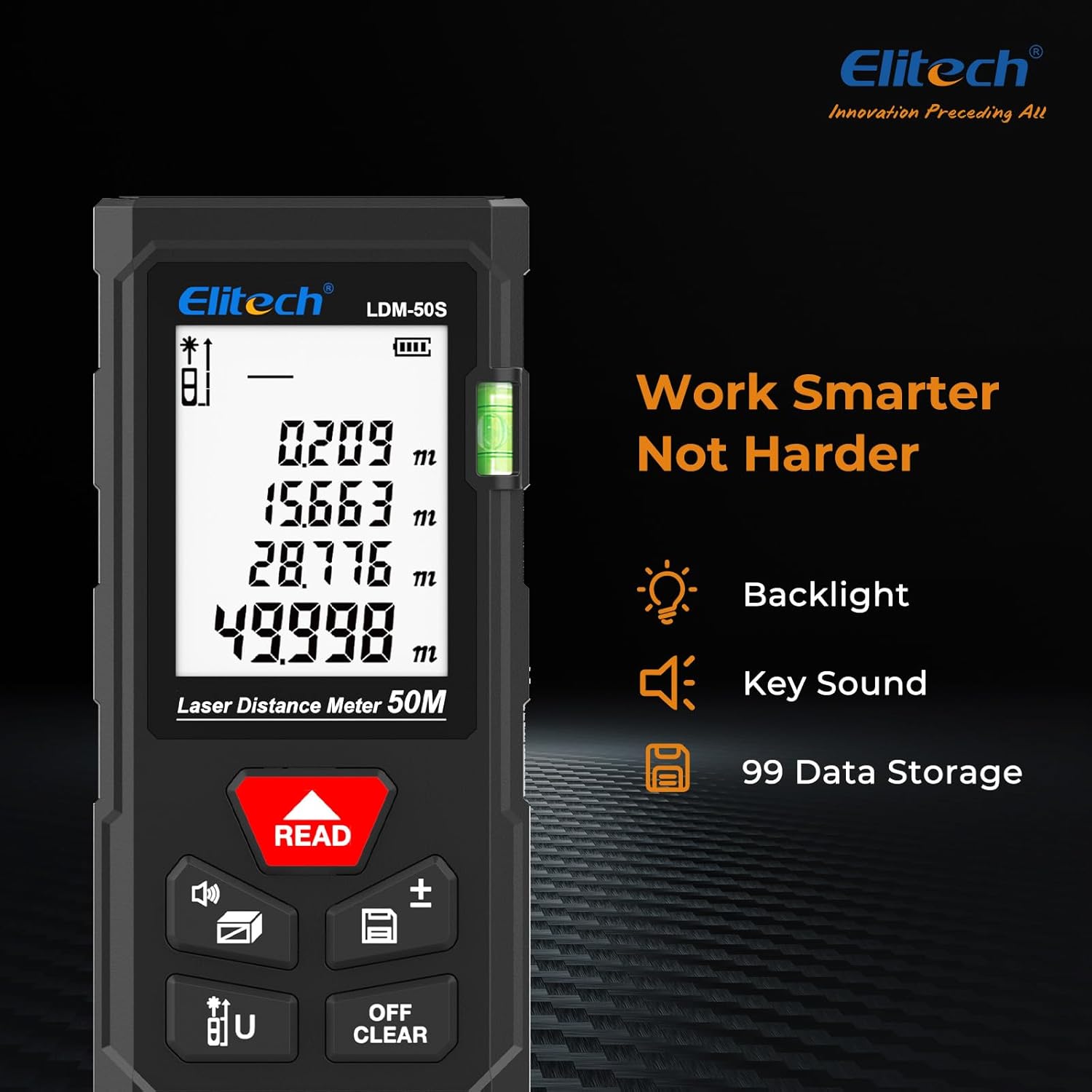

Image: Elitech LDM-50S display, showing backlight, key sound indicator, and data storage icon.
6. ساتنه
6.1 پاکول
- وسیله په نرمۍ سره مسح کړئ، دamp ټوکر د کثافاتو پاکوونکي یا محلول مه کاروئ.
- Clean the laser lens carefully with a soft, lint-free cloth to ensure accurate measurements.
6.2 ذخیره کول
- Store the device in its original box or a protective case when not in use.
- که چیرې وسیله د اوږدې مودې لپاره د لیکیدو مخنیوي لپاره ونه کارول شي، نو بیټرۍ لرې کړئ.
- Store in a dry place, away from direct sunlight and extreme temperatures.
7. ستونزه حل کول
If you encounter issues with your Elitech LDM-50S, refer to the table below for common problems and solutions:
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| وسیله فعاله نه ده | ټیټ یا مړه بیټرۍ؛ د بیټرۍ ناسم نصب کول | Replace batteries with new AAA alkaline batteries; Ensure correct polarity. |
| ناسم اندازه کول | Laser lens dirty; Incorrect reference point; Device needs calibration | Clean laser lens; Verify the correct measurement reference point is selected; Perform self-calibration. |
| لیزر بیم نه لیدل کیږي | Device not powered on; Bright ambient light | Press READ button to activate laser; Use in lower light conditions or use a target plate. |
| ښودنه تیاره یا د لوستلو وړ نه ده | Low batteries; Extreme temperatures | Replace batteries; Operate within specified temperature range. |
| په ښودلو کې د تېروتنې پیغام | Measurement out of range; Obstruction; Internal error | Ensure target is within 165ft (50m); Clear any obstructions; Power cycle the device. If error persists, contact support. |
8. مشخصات
| فیچر | تفصیل |
|---|---|
| ماډل | LDM-50S |
| د اندازه کولو سلسله | له 0.05m تر 50m (0.16ft تر 165ft) |
| د اندازه کولو دقت | ±۳ ملي متره (±۱/۸ انچه) |
| د اندازه کولو وخت | نږدې 0.5 ثانیې |
| د لیزر ډول | Class 2, 630-670nm, <1mW |
| د اندازه کولو واحدونه | m, cm, ft, in, ft+in (decimal and fractional) |
| د معلوماتو ذخیره کول | تر 99 ریکارډونو پورې |
| اتوماتیک بندول | Yes (to conserve battery) |
| د بیټرۍ ډول | 2 x 1.5V AAA Alkaline batteries |
| مواد | د ABS انجنیري پلاستيک |
| د دوړو/اوبو مقاومت | IP54 |
| Drop-Proof | 1m (3.3ft) |
| د توکي وزن | تقریبا ۱.۷۶ اونس (۵۰ ګرامه) |
| د کڅوړې ابعاد | نږدې 6.3 x 3.54 x 1.46 انچه |
Image: Elitech LDM-50S displaying its precision (±2mm), range (50m), and laser type (Class 2).
Image: Elitech LDM-50S highlighting its robust construction with ABS engineering plastic, IP54 dust/water resistance, and 1m drop-proof capability.
9. د تضمین معلومات
The Elitech LDM-50S Laser Distance Meter comes with a ۱-کلن تضمین from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.
مهرباني وکړئ د تضمین ادعاګانو لپاره د پیرود ثبوت وساتئ.
10. د پیرودونکي ملاتړ
For technical assistance, warranty claims, or any questions regarding your Elitech LDM-50S Laser Distance Meter, please contact Elitech customer support.
- Webسایټ: د ایلیټیک رسمي ویب پاڼې ته مراجعه وکړئ website for FAQs, product information, and support resources.
- برېښنالیک/تلیفون: Refer to the contact information provided on the Elitech webد مستقیم ملاتړ لپاره په سایټ یا ستاسو د محصول بسته بندۍ کې.
Elitech is headquartered in the USA and is committed to providing high-quality products and customer service.
