1. پیژندنه
This manual provides comprehensive instructions for the MAIMEIMI Motorcycle Speedometer Cluster. This all-in-one digital dashboard integrates essential motorcycle data, including speed, RPM, gear position, fuel level, indicator lights, alarms, and time display. Designed for 8-12V systems, it offers enhanced safety and convenience for riders.
2. کلیدي ځانګړتیاوې
- All-in-One Dashboard: Integrates speed, RPM, gear position, fuel level, indicator lights, alarms, and time display.
- Wide Display Range: Speed (up to 199 MPH/KMH), RPM (0-12K), odometer (99999 miles/KM), trip meter (999.9 miles/KM), 5-gear indicator, turn signals, high beam, neutral, engine fault indicators, low oil/voltage الارمونه.
- Waterproof & Auto-Brightness: Anti-glare LCD display with ambient light sensor for automatic brightness adjustment. Superior waterproof design for reliable use in various weather conditions.
- میخانیکي نصب: Utilizes a mechanical speed gear, simplifying setup without external speed sensors.
- د کیلیبریشن اختیارونه: Adjustable for tire circumference, RPM, and fuel sensor settings (compatible with 2-wire or 3-wire systems).
۲. د انٹرفیس ښودلview
The speedometer cluster features a clear LCD display providing all necessary riding information at a glance. Refer to the diagram below for an explanation of each display element.

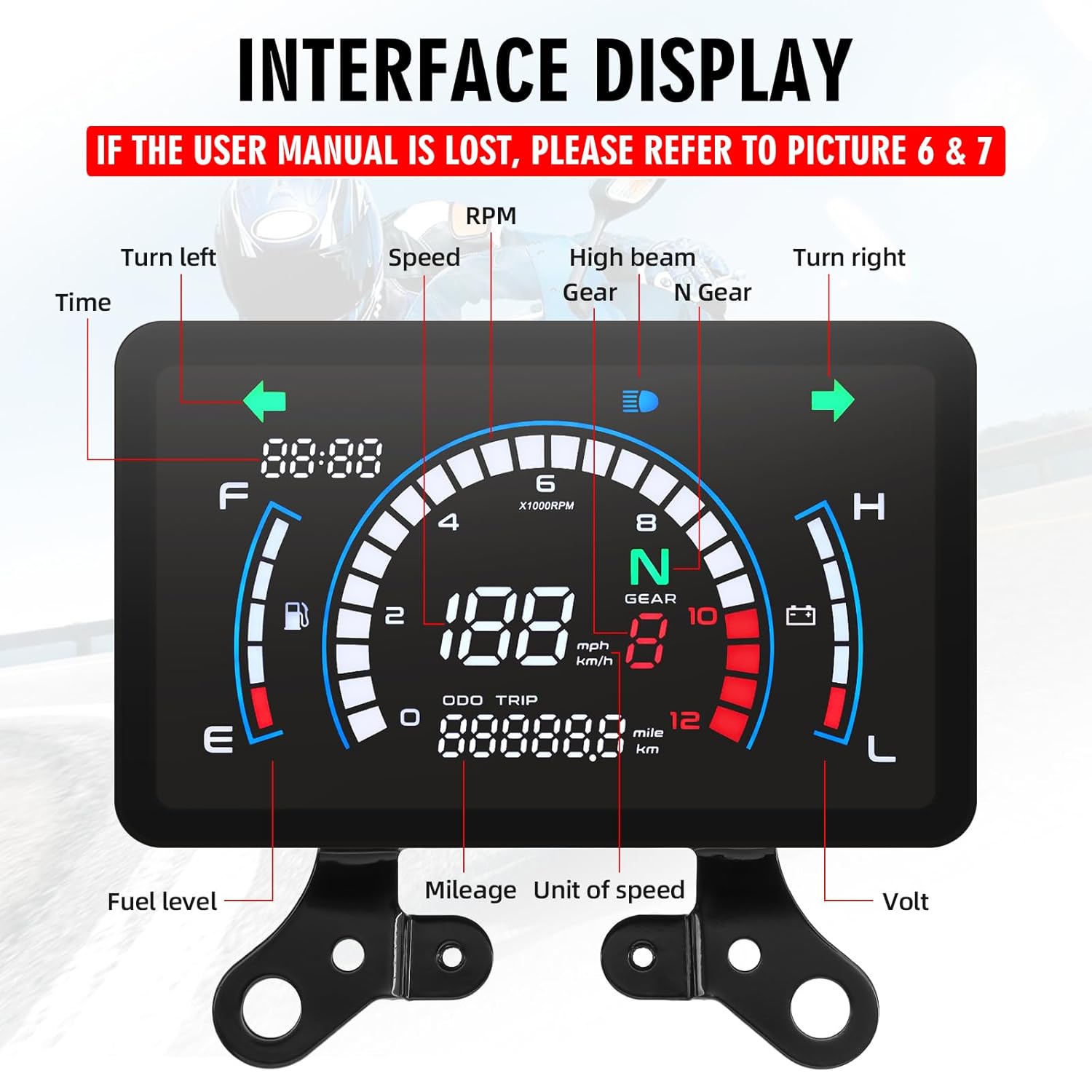

شکل 3.1: Display Interface. This image illustrates the various indicators on the speedometer cluster, including time, turn signals, speed, RPM, gear, high beam, neutral, fuel level, odometer, trip meter, and voltage.
- وخت: اوسنی وخت ښیې.
- Turn Left/Right Indicators: Illuminates when turn signals are active.
- سرعت: Shows current speed in MPH or KMH.
- RPM: په یوه دقیقه کې د انجن انقلابونه ښیې.
- ګیر: Indicates current gear (N for Neutral, 1-5 for gears).
- لوړ بیم: Illuminates when high beam is active.
- د سونګ موادو کچه: Bar graph indicating fuel tank level.
- اوډومیټر (ODO): ټول سفر شوی واټن.
- د سفر میټر (TRIP): Resettable trip distance.
- ولټ: د اوسني بیټرۍ حجم ښکاره کويtage.
4. د نصب لارښود
4.1 د نصب کولو دمخه چکونه
Before installation, ensure your motorcycle's electrical system is compatible with an 8-12V input. Incorrect voltage can damage the speedometer. If you are unsure about the installation process, consult a professional.
4.2 د تارونو ډیاګرام
Connect the speedometer to your motorcycle's electrical system according to the following wiring diagram. Ensure all connections are secure and properly insulated.

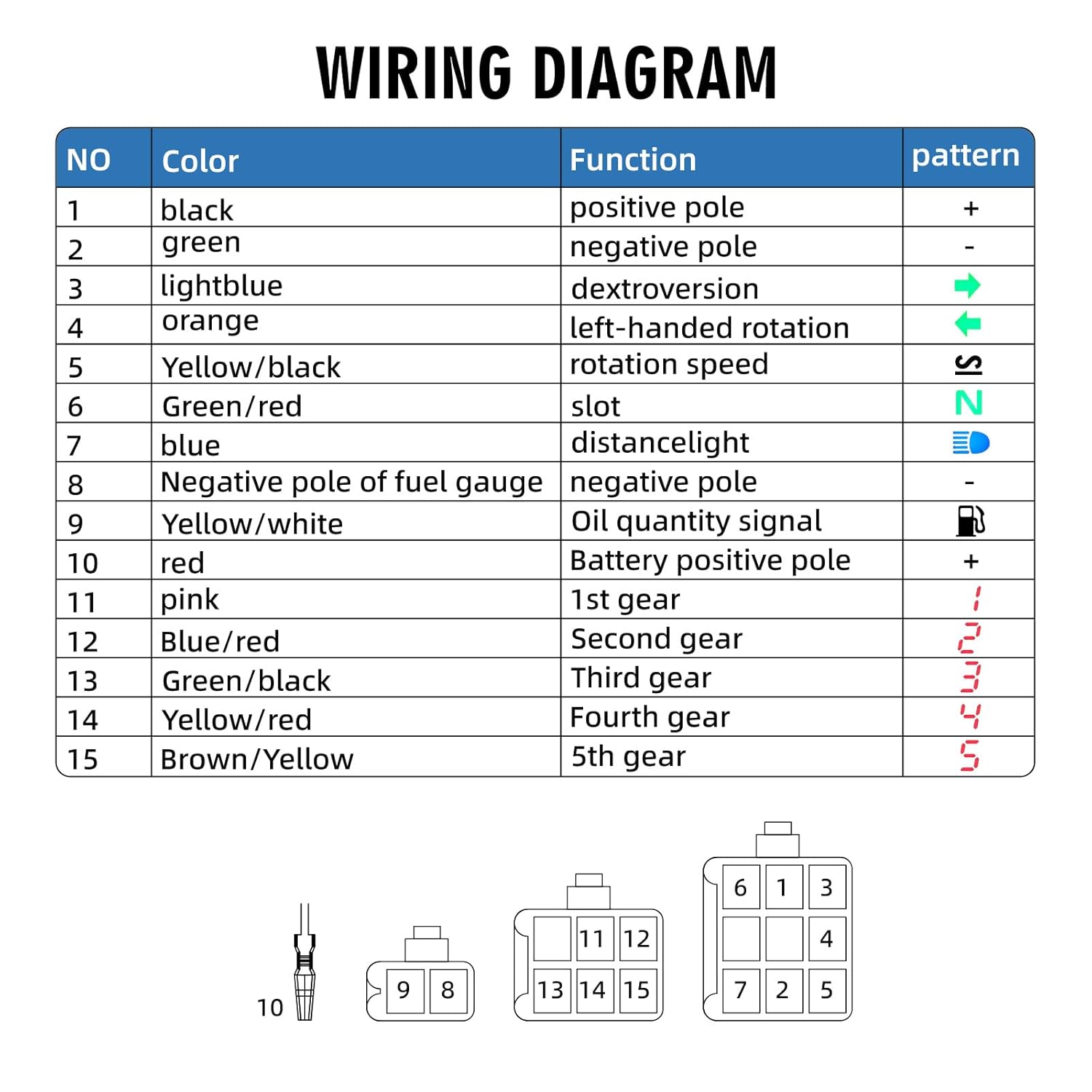

شکل 4.1: Wiring Diagram. This diagram details the color-coded wires and their functions for connecting the speedometer cluster to the motorcycle's electrical system.
| نه | رنګ | فعالیت | پته |
|---|---|---|---|
| 1 | تور | مثبت قطب | + |
| 2 | شین | منفي قطب | - |
| 3 | رڼا نیلي | Dextroversion (Right Turn Signal) | → |
| 4 | نارنجي | Left-Handed Rotation (Left Turn Signal) | ← |
| 5 | ژیړ / تور | Rotation Speed (RPM Signal) | S |
| 6 | شنه / سور | Slot (Neutral Gear Signal) | N |
| 7 | آبي | Distance Light (High Beam) | 🔦 |
| 8 | Negative Pole of Fuel Gauge | منفي قطب | - |
| 9 | ژیړ / سپین | Oil Quantity Signal | ⛽ |
| 10 | سور | د بیټرۍ مثبت قطب | + |
| 11 | ګلابي | لومړی ګیر | 1 |
| 12 | نیلي / سور | دوهم ګیر | 2 |
| 13 | شنه / تور | دریم ګیر | 3 |
| 14 | ژیړ / سره | Fourth Gear | 4 |
| 15 | نسواري/ژېړ | څلورم ګیر | 5 |
4.3 Mechanical Speed Connector
This speedometer connects directly to your motorcycle's original mechanical meter teeth, eliminating the need for a separate speed sensor. Ensure a secure connection for accurate speed readings.
شکل 4.2: Mechanical Speed Connector. This image shows the mechanical speed connector on the back of the speedometer, designed to interface with the motorcycle's existing mechanical speed gear.
5. عملیاتي لارښوونې
5.1 Touch-Sensitive Button
The speedometer features a touch-sensitive button (labeled "ADJ") located on the back, typically on the right small corner of the instrument panel. Apply normal pressure to interact with the device.
شکل 5.1: Touch-Sensitive Button. This image highlights the location and function of the "ADJ" touch-sensitive button on the speedometer's rear panel.
5.2 Basic Operation and Settings
The "ADJ" button is used for various settings and adjustments. The functionality changes based on whether you perform a short press or a long press.
شکل 5.2: One-Click Setting & Simple Operation. This image provides a table detailing the functions of long press and short press actions on the ADJ button for various settings.
| موډ | اوږده فشار | لنډ پریس |
|---|---|---|
| خلاصول | Within one minute of starting up, in neutral or idle mode, press and hold the ADJ touch button for 5 seconds. Release it when the decorative strip flashes. Parameter adjustments can then be made. | |
| ټولټال | د ساعت سمون | Switch to TRIP |
| TRIP | Small mileage clearing | Switch to TOTAL |
| ساعت | Lock in hours or minutes, enter the selection of kilometers and miles | Adjust the hours and minutes |
| Kilometers, Miles | Lock in kilometer or mile mode; Enter the selection of the fuel gauge | Switching between kilometers and miles |
| د تیلو ګیج | Lock the fuel gauge type and enter the speed ratio selection | Selection of Two Line or Three Line Fuel Gauge |
| Speed Ratio Adjustment Mode | Lock speed ratio; Enter the wheel outer diameter size adjustment | 1, /2, /4, /8, ; *1, *2, *4 Cyclic regulation |
| Adjustment of Wheel Outer Diameter Size | Lock the circumference of the wheels in units, tens, hundreds, and thousands; Enter the setting of pulse count | Adjust the circumference of the wheel in units, tens, hundreds, and thousands in sequence |
| Setting of Pulse Number | Lock the numerical value of several bits or ten bits of the pulse | Set the number of pulse bits or ten bits |
| In any state, do not operate for 5 seconds to save data and exit the adjustment mode. | ||
6. Calibration and Advanced Settings
Accurate readings depend on proper calibration. The speedometer allows for adjustments to match your motorcycle's specific characteristics.
- Tire Circumference Adjustment: Adjust the wheel outer diameter size (C0000-C9999) to ensure accurate speed readings. This setting is crucial for matching the speedometer to your specific tire size.
- RPM Calibration: Fine-tune the RPM signal for precise engine speed display.
- Fuel Sensor Settings: Configure the fuel gauge for compatibility with either 2-wire or 3-wire fuel sensor systems.
- Pulse Number Setting: Adjust the pulse count for accurate data interpretation.
Refer to the "ADJ Button Functions" table in Section 5.2 for detailed steps on how to access and modify these settings.
۹.۲. د اوبو ضد فعالیت
The MAIMEIMI Motorcycle Speedometer Cluster is designed with superior waterproof capabilities, ensuring reliable operation in various weather conditions, including rain and damp environments. This protects the internal components from moisture damage and maintains display visibility.
شکل 7.1: Waterproof Design. The image shows the speedometer installed on a motorcycle in rainy conditions, demonstrating its waterproof design.
8. د محصول مشخصات
Detailed specifications for the MAIMEIMI Motorcycle Speedometer Cluster.
شکل 8.1: Product Dimensions. This image provides a visual representation of the speedometer's dimensions in millimeters and inches.
| مشخصات | ارزښت |
|---|---|
| برانډ | MAIMEIMI |
| ماډل | د B0FJWXD5NF معرفي کول |
| مواد | اکریلونیټریل بوټاډین سټیرین (ABS)، فلز |
| د محصول ابعاد (L x W x H) | ۳.۹۴ x ۱.۱۸ x ۱.۱۸ انچه (تقریبا ۱۰۰ x ۳۰ x ۳۰ ملي متره) |
| د توکي وزن | 1.5 پونډه (0.68 kg) |
| د تار ډول | میخانیکي |
| د عملیاتو Voltage | 8-12V |
| Speed Display Range | 0-199 MPH/KMH |
| RPM Display Range | 0-12,000 RPM |
| Odometer Display Range | 0-99,999 miles/KM |
| Trip Meter Display Range | 0-999.9 miles/KM |
۲. په بکس کې څه دي؟
په بسته کې لاندې توکي شامل دي:
- MAIMEIMI Motorcycle Speedometer Cluster
- د قوسونو نصبول
- User Manual (electronic copy available upon request)
10. ستونزه حل کول
دا برخه عامې ستونزې حل کوي او حل لارې وړاندې کوي.
- مسله: Display is not turning on or is intermittent.
حل لاره: حجم تایید کړئtage compatibility (8-12V) and check all wiring connections as per the wiring diagram (Section 4.2). Ensure the positive and negative poles are correctly connected. - مسله: Speed or RPM readings are inaccurate.
حل لاره: Ensure the mechanical speed connector is properly engaged with the motorcycle's speed gear (Section 4.3). Calibrate the tire circumference and RPM settings as described in Section 6. - مسله: Fuel gauge is not displaying correctly.
حل لاره: Check the fuel sensor wiring. Adjust the fuel gauge settings for either 2-wire or 3-wire systems in the parameter settings (Section 5.2, Fuel Gauge). - مسله: Difficulty understanding parameter settings.
حل لاره: Refer to the "ADJ Button Functions" table in Section 5.2 for detailed instructions on long press and short press operations. Practice navigating the settings in a stationary, safe environment.
For persistent issues or complex installation challenges, it is recommended to seek support from the manufacturer or a qualified professional with experience in motorcycle electronics.
11. د ملاتړ او اړیکو معلومات
If you require further assistance, have questions, or need an electronic copy of this manual, please contact MAIMEIMI customer support. Always verify voltage compatibility (8-12V) to avoid damage during installation.
For installation issues, seek our support or a professional with experience. This motorcycle dashboard accessory demands careful handling.
جوړونکی: MAIMEIMI
For the latest support information, please visit the official MAIMEIMI store on Amazon: MAIMEIMI Store
