BSIDE HX2 Infrared Thermal Imaging Camera User Manual

1. پیژندنه

The BSIDE HX2 is an advanced infrared thermal imaging camera designed for precise temperature measurement and fault detection. It features a 320x240 pixel resolution, a wide temperature measurement range, and a high frame rate for clear and accurate thermal analysis. This manual provides essential information for the safe and effective operation, setup, and maintenance of your device.

2. محصول ختم شوview

The BSIDE HX2 camera integrates several features to enhance thermal imaging capabilities, including dual-light fusion, multiple color palettes, and data storage.

Figure 2.1: BSIDE HX2 Thermal Imaging Camera. This image illustrates the device's ability to visualize defects, offering clearer images and more accurate temperature measurements through infrared thermal imaging. Key features include dual-light fusion, 240x320 pixel heat map resolution, 15 pseudo-color modes, built-in 4GB memory, and data export support. Examples of applications like circuit board inspection, building floor heating, electrical equipment, and building pipeline analysis are shown.

کلیدي ځانګړتیاوې:

• Dual-light Fusion: Combines thermal imaging with visible light for enhanced detail.
• لوړ ریزولوشن: 320x240 IR resolution for detailed thermal maps.
• د تودوخې پراخه لړۍ: د -۵۸°F څخه تر ۵۷۲°F (-۵۰°C څخه تر ۳۰۰°C) پورې اندازه کیږي.
• د چټک چوکاټ کچه: 25 Hz for smooth real-time temperature monitoring.
• د تودوخې الارمونه: Configurable high/low temperature alarms.
• 15 Pseudo-Color Modes: Various color palettes for different visualization needs.
• جوړ شوی حافظه: 4GB internal storage for up to 26,000 BMP image files.
• د معلوماتو صادرول: Connects via USB to a computer for data transfer.
• پراخه زاویه لینز: 50°x50° lens for a broader field of view.
• دوامدار ډیزاین: Sturdy, wear-resistant, and durable casing with IP54 protection and 1.5m drop resistance.

3. ترتیب کول

۵.۱ د بیټرۍ نصب او چارج کول

The BSIDE HX2 camera comes with a built-in Lithium-ion battery. Ensure the device is fully charged before first use. Connect the camera to a power source using the provided USB cable. The charging indicator will show the charging status.

3.2 ابتدايي پاور آن

Press and hold the power button (usually marked with a power symbol) until the screen illuminates. The device will perform a self-check before displaying the thermal image.

4. عملیاتي لارښوونې

۸ پاور آن/بند

• د فعالولو لپاره: د بریښنا تڼۍ فشار ورکړئ او ونیسئ تر هغه چې ښودنه فعاله شي.
• د بریښنا بندولو لپاره: Press and hold the power button until the shutdown sequence initiates and the screen turns off.

4.2 Temperature Measurement Modes

The camera offers multiple temperature measurement modes for real-time monitoring.

Figure 4.1: Cold and Hot Spot Tracking. This image demonstrates the camera's ability to track the lowest temperature point (cold spot), the highest temperature point (hotspot), and display the center point temperature, providing comprehensive real-time temperature monitoring.

• د مرکز نقطې اندازه کول: د سکرین په مرکز کې د تودوخې درجه ښیي.
• Highest Temperature Point (Hotspot): Automatically identifies and displays the maximum temperature within the field of view.
• Lowest Temperature Point (Cold Spot): Automatically identifies and displays the minimum temperature within the field of view.

Figure 4.2: Radiant Heating Thermal Imaging Detection. This image illustrates how the camera provides clear images, automatically captures target temperature values, and shows effects in multiple scenes, including central point, highest temperature point, and lowest temperature point for precise temperature measurement.

4.3 د رنګ پالټ

The BSIDE HX2 offers 15 types of color palette patterns to visualize temperature differences effectively. These can be switched quickly using dedicated keys.

Figure 4.3: Color Palette Selection. This image displays the variety of 15 color palette patterns available, such as Fusion1, Black hot, White hot, Deep blue, Red hot, Green hot, Rain, Ice and fire, Colour1, Colour2, Dark brown, Iron red1, Iron red2, and Rainbow. It also shows the settings menu for selecting these palettes and other display options.

4.4 د معلوماتو صادرول

The camera includes a built-in 4GB memory card capable of storing approximately 26,000 BMP image files. Data can be exported to a computer via a USB connection.

Figure 4.4: Data Export via USB. This image shows the BSIDE HX2 connected to a laptop via USB, demonstrating the process of exporting images stored on the built-in 4GB memory card. The camera supports BMP image format.

4.5 پراخه زاویه لینز

The 50°x50° wide-angle lens allows for a larger distance and a wider field of view, making it suitable for scanning larger areas efficiently.

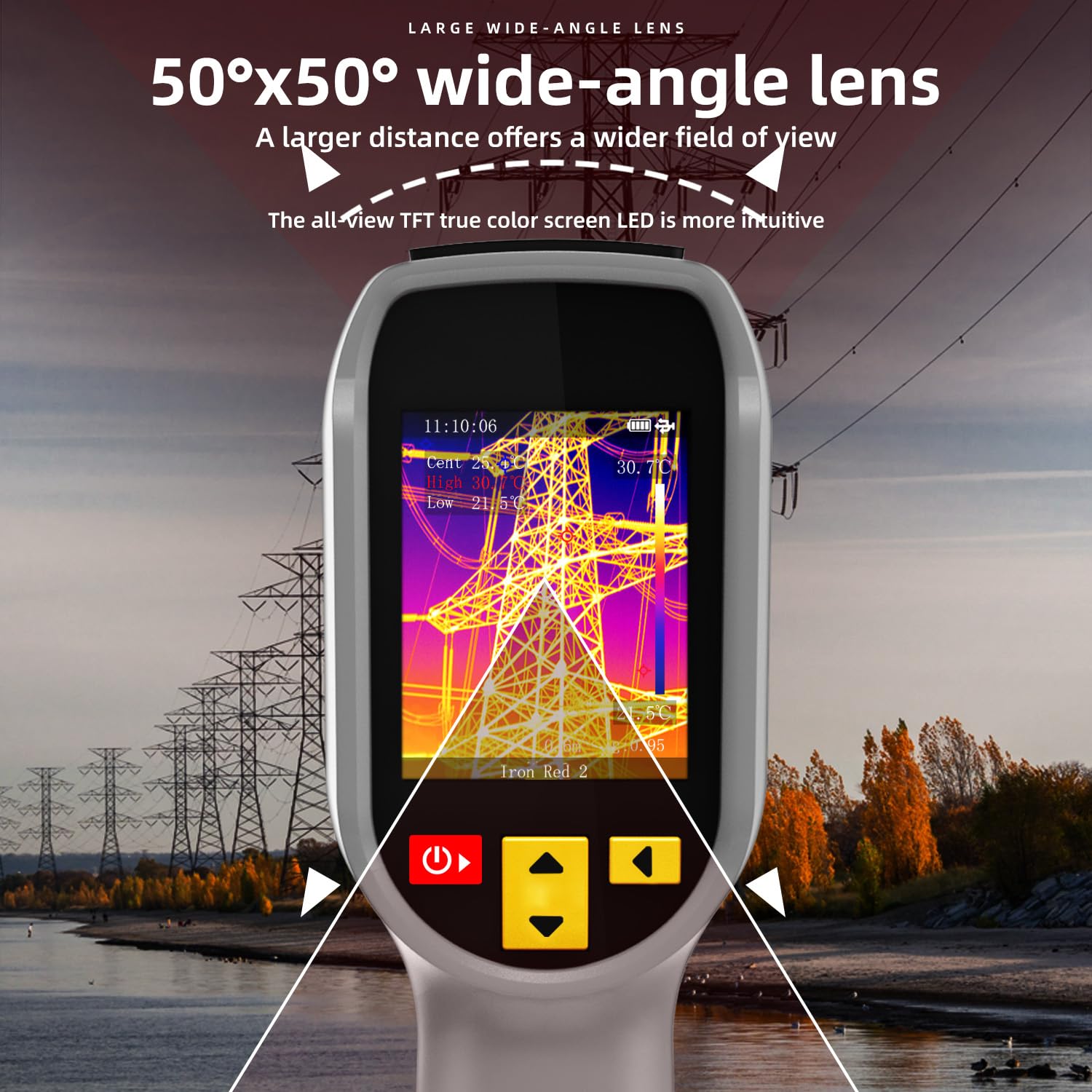

Figure 4.5: Wide-Angle Lens. This image illustrates the benefit of the 50°x50° wide-angle lens, providing a broader field of view for comprehensive thermal inspection, such as power lines.

5. ساتنه

5.1 د وسیلې پاکول

Regularly clean the camera body with a soft, dry cloth. For the lens, use a specialized lens cleaning cloth and solution to avoid scratches. Do not use abrasive cleaners or solvents.

5.2 ذخیره کول

Store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the battery is partially charged if storing for extended periods.

5.3 دوام

The camera features a high-quality double injection molded casing, making it sturdy, wear-resistant, and durable. It has an IP54 protection level and is designed to withstand drops from up to 1.5 meters.

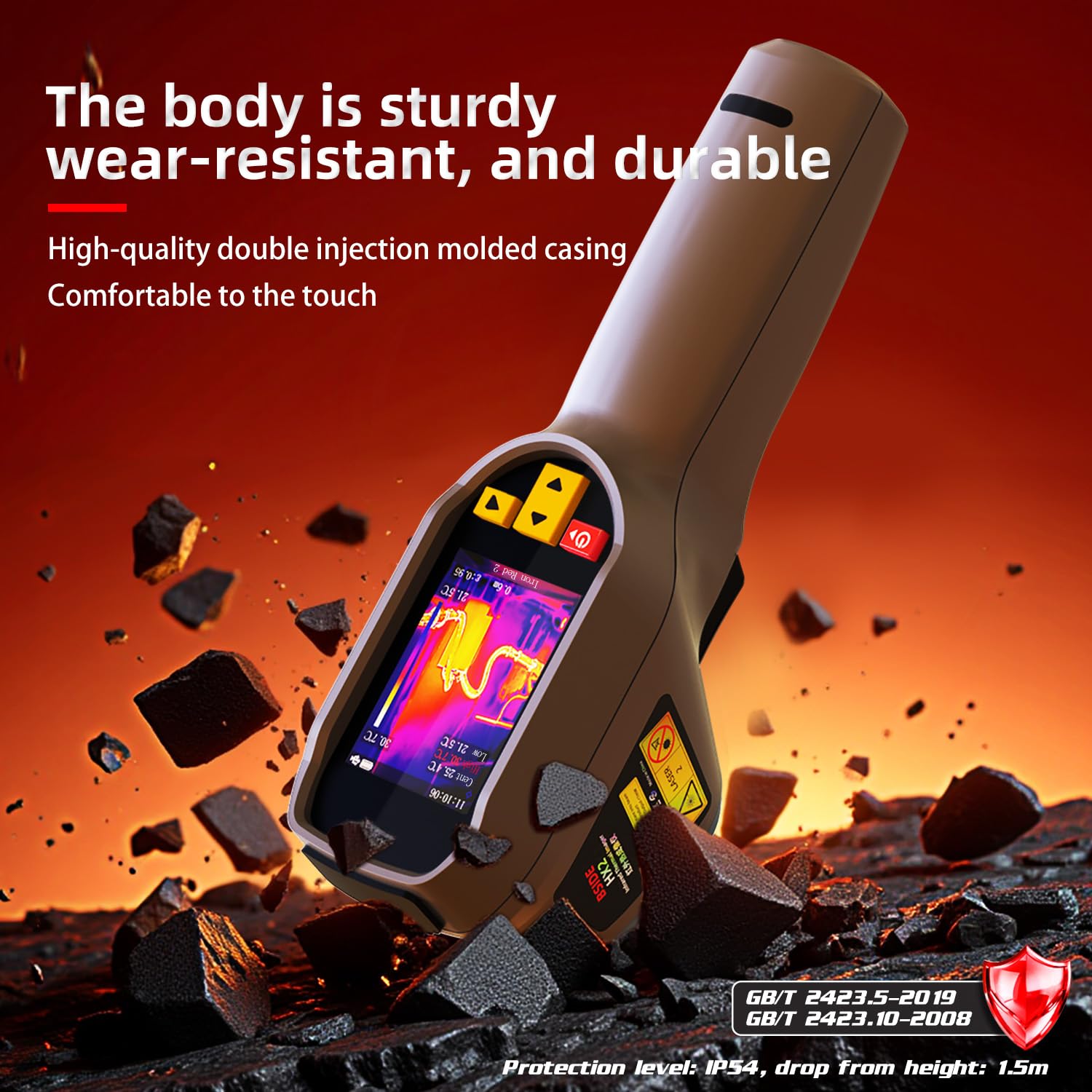

Figure 5.1: Durable Construction. This image highlights the sturdy, wear-resistant, and durable body of the BSIDE HX2, featuring a high-quality double injection molded casing for comfortable handling and enhanced protection, including IP54 rating and 1.5m drop resistance.

6. ستونزه حل کول

This section addresses common issues you might encounter with your BSIDE HX2 thermal imaging camera.

• وسیله نه چلیږي: ډاډ ترلاسه کړئ چې بیټرۍ چارج شوې ده. د بریښنا سرچینې سره وصل شئ او بیا هڅه وکړئ. که ستونزه دوام ومومي، د ملاتړ سره اړیکه ونیسئ.
• Image appears blurry or unclear: Clean the lens with a soft, lint-free cloth. Ensure the focus is adjusted correctly if your model supports manual focus.
• د تودوخې ناسمې شمېرنې: Verify the emissivity setting is appropriate for the material being measured. Ensure the measurement distance is within the recommended range.
• Cannot export data: Ensure the USB cable is securely connected to both the camera and the computer. Check if the camera is in data transfer mode (if applicable).

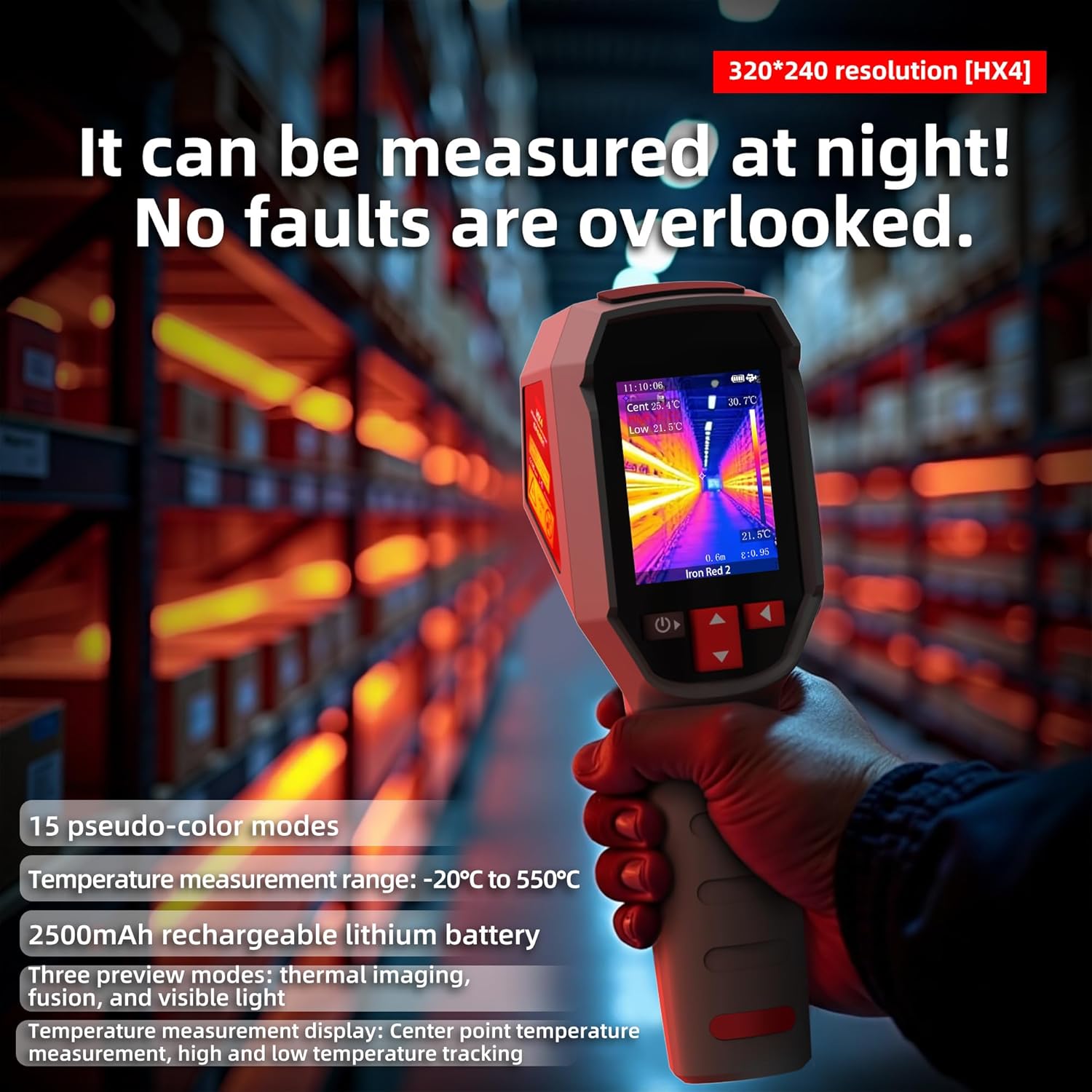

Figure 6.1: Night Measurement Capability. This image emphasizes the camera's ability to measure effectively at night, ensuring no faults are overlooked. It also highlights the 320*240 resolution, 15 pseudo-color modes, -20°C to 550°C temperature measurement range, 2500mAh rechargeable lithium battery, and three preview modes: thermal imaging, fusion, and visible light.

7. مشخصات

8. تضمین او ملاتړ

Information regarding specific warranty terms and availability of spare parts is not provided in the product details. For technical support or service inquiries, please refer to the contact information provided with your purchase or visit the official BSIDE webسایټ
