KATOOL 9500lbs 4 پوسټ لفټ ماډل 4H950 لارښوونې لارښود

1. پیژندنه

Thank you for choosing the KATOOL 9500lbs 4 Post Lift, Model 4H950. This manual provides essential information for the safe installation, operation, and maintenance of your new vehicle lift. Please read this manual thoroughly before attempting to assemble or operate the lift. Proper understanding and adherence to these instructions will ensure safe and efficient use, extending the lifespan of your equipment.

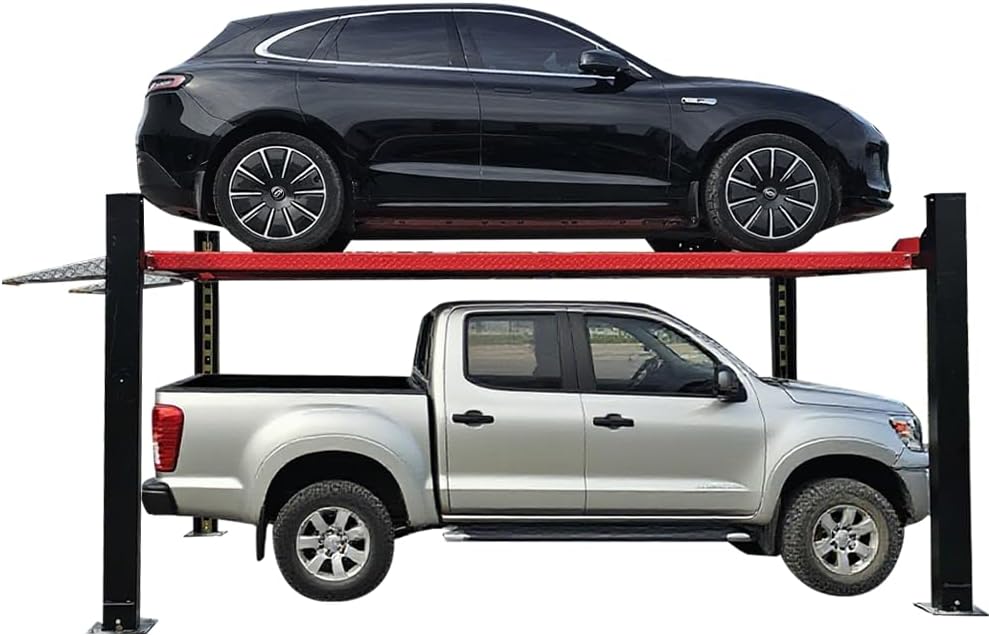

Figure 1.1: KATOOL 9500lbs 4 Post Lift, Model 4H950.

2. د خوندیتوب معلومات

Your safety and the safety of others are paramount. Always follow basic safety precautions when operating this equipment. Failure to do so may result in serious injury or property damage.

• Read and understand all instructions before operating the lift.
• Ensure the lift is installed on a level, solid concrete foundation capable of supporting the lift's weight and maximum load.
• Only trained and authorized personnel should operate the lift.
• د کار ساحه پاکه او ښه رڼا وساتئ.
• Do not exceed the maximum lifting capacity of 9,500 lbs.
• Always engage safety locks before working under a raised vehicle.
• Ensure proper vehicle positioning on the runways.
• Keep hands, feet, and clothing clear of moving parts.
• Never leave a raised vehicle unattended without engaging safety locks.
• مناسب شخصي محافظتي تجهیزات (PPE) واغوندئ.
• د هر ډول ترمیم یا ترمیم ترسره کولو دمخه بریښنا قطع کړئ.

3. د بسته محتويات

The KATOOL 9500lbs 4 Post Lift package includes the following components:

• 4 Post Lift Structure (Posts, Runways, Crossbeams)
• Moving Kits/Casters (for mobility)
• د المونیم Ramps (for vehicle access)
• Jack Tray (for use with optional jacking beam)
• Drip Trays (to protect vehicles parked underneath)
• Hydraulic Power Unit (110V)
• Cables and Pulleys
• فاسټینرونه او هارډویر

Figure 3.1: All included components in the KATOOL 4 Post Lift package.

4. مشخصات

Key technical specifications for the KATOOL 9500lbs 4 Post Lift Model 4H950:

Figure 4.1: Product specifications and dimensions diagram.

5. ترتیب او نصب کول

Proper installation is critical for the safe and reliable operation of your KATOOL 4 Post Lift. It is recommended that installation be performed by at least two individuals with appropriate tools and equipment.

5.1 د سایټ چمتو کول

• Ensure the installation area has a level concrete floor, free from cracks or defects, capable of supporting the lift's weight and maximum load. Consult a structural engineer if unsure.
• Verify adequate overhead clearance for the lift's maximum height (79 inches) plus the height of the vehicle.
• Ensure access to a dedicated 110V power outlet for the hydraulic power unit.

5.2 Unloading and Component Identification

The lift components are heavy. A forklift or similar heavy lifting equipment is required for unloading the shipment. Carefully unpackage all components and verify against the package contents list. Identify each part before beginning assembly.

۴.۲ د اسمبلۍ مرحلې (عمومي اوور)view)

1. پوسټونه: Carefully position the four posts according to the desired layout, ensuring they are square and level.
2. Attach Crossbeams: Secure the crossbeams to the posts. This step often requires lifting the crossbeams into place.
3. Install Runways: Attach the runways to the crossbeams. Ensure proper alignment and secure all fasteners.
4. د لارې کیبلونه: Install the lifting cables, routing them through the pulleys and securing them according to the detailed diagrams provided in the full assembly manual. Ensure cables are properly tensioned.
5. Connect Hydraulic System: Mount the hydraulic power unit and connect the hydraulic lines to the lift cylinder. Fill the reservoir with appropriate hydraulic fluid.
6. Install Safety Locks: Ensure all safety lock mechanisms are correctly installed and functional.
7. لوازم ضمیمه کړئ: Install the aluminum ramps, jack tray, drip trays, and casters as needed.

Figure 5.1: The KATOOL 4 Post Lift supporting two vehicles, showcasing its 9500lbs capacity and 79-inch lifting height.

Figure 5.2: Detail of the lift's safety lock mechanism.

Figure 5.3: Detail of the cable routing system.

Figure 5.4: The 110V hydraulic power unit.

6. عملیاتي لارښوونې

Follow these steps for safe operation of your KATOOL 4 Post Lift:

۶.۷ د عملیاتو دمخه چک لیست

• Ensure the lift area is clear of obstructions.
• Verify all fasteners are tight and cables are properly tensioned.
• د هیدرولیک مایع کچه وګورئ.
• Confirm power supply is connected.

6.2 Lifting a Vehicle

1. د موټر موقعیت: Drive the vehicle onto the runways, ensuring it is centered and within the designated lifting points.
2. پاکه سیمه: Ensure no personnel or objects are near the lift's moving parts.
3. پورته کول پیل کړئ: Press and hold the 'UP' button on the hydraulic power unit. The lift will begin to rise.
4. Engage Safety Locks: Once the desired height is reached, or if working under the vehicle, lower the lift slightly until the safety locks engage. Listen for the audible click.
5. قلفونه تایید کړئ: Visually confirm that all four safety locks are fully engaged before working under the vehicle.

Figure 6.1: KATOOL 4 Post Lift in operation, showing a vehicle raised to working height.

6.3 Lowering a Vehicle

1. پاکه سیمه: Ensure no personnel or objects are under or near the lift.
2. لږ پورته کړئ: Press the 'UP' button briefly to relieve pressure on the safety locks.
3. Disengage Locks: Operate the safety lock release mechanism (typically a lever or button).
4. Lower Lift: Press and hold the 'DOWN' button or lever to slowly lower the lift.
5. موټر لرې کړئ: Once the lift is fully lowered, carefully drive the vehicle off the runways.

7. ساتنه

Regular maintenance is essential for the longevity and safe operation of your KATOOL 4 Post Lift.

• ورځنی: Inspect cables, pulleys, and safety locks for wear or damage. Check for hydraulic fluid leaks.
• اونیزه: Clean the lift structure. Check and lubricate all pivot points and moving parts.
• میاشتنی: Check cable tension and adjust if necessary. Inspect all fasteners for tightness. Check hydraulic fluid level and top up if needed.
• په کلني ډول: Have a qualified technician perform a thorough inspection of the entire lift system, including hydraulic components, electrical connections, and structural integrity.

8. ستونزه حل کول

This section addresses common issues you might encounter with your KATOOL 4 Post Lift.

8.1 Lift Does Not Rise

• ځواک چیک کړئ: Ensure the power unit is plugged in and receiving 110V power. Check circuit breaker.
• هیدرولیک مایع: Verify the hydraulic fluid level is adequate.
• د موټرو فعالیت: Listen for the motor running. If not, check electrical connections.

8.2 Lift Lowers Unevenly

• د کیبل فشار: Inspect and adjust cable tension on all four posts to ensure they are uniform.
• خنډونه: Check for any obstructions preventing smooth lowering.

8.3 Safety Locks Not Engaging/Disengaging

• د میکانیزم معاینه: Inspect the safety lock mechanism for any debris, damage, or misalignment.
• Cable/Linkage: Ensure the release cables or linkages are free-moving and properly connected.

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact KATOOL customer support.

9. تضمین او ملاتړ

KATOOL stands behind the quality of its products. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your purchase or visit the official KATOOL website. For technical assistance, parts, or any other support inquiries, please contact KATOOL customer service through the contact information provided with your product or on the manufacturer's webسایټ

When contacting support, please have your model number (4H950) and purchase date readily available.
