1. پیژندنه
The Neoteck RD670 is a versatile 3-in-1 Electromagnetic Field (EMF) detector designed to measure electric field (EF), magnetic field (MF), and radio frequency (RF) radiation. This device provides accurate readings and features visual and audible alarms to indicate radiation levels. It is suitable for use in various environments, including homes, offices, and outdoor settings, to identify potential sources of electromagnetic radiation.
2. د بسته محتويات
ډاډ ترلاسه کړئ چې ټول توکي په کڅوړه کې شتون لري:
- 1 x Neoteck RD670 EMF Detector
- 1 x د ډول-C چارج کیبل
- ۱ x د کارونکي لارښود (دا سند)
- 1 x د ذخیره کولو کڅوړه
Image: Neoteck RD670 EMF Detector and its included accessories.
3. د محصول ب Featuresې
- د ۶-په-۱ اندازه کول: Simultaneously detects Electric Field (EF), Magnetic Field (MF), and Radio Frequency (RF) radiation.
- 3-Axis Magnetic Field Detection: Measures magnetic field components along X, Y, and Z spatial axes to identify direction.
- Visual & Audio Alarm: Features a tri-color LED indicator (green, blue, red) and a buzzer that activate when radiation levels exceed safety thresholds.
- Intelligent RF Signal Recognition: Identifies common RF sources such as Wi-Fi/Phone and Microwave, displaying specific indicators on the screen.
- د چارج وړ بیټرۍ: Equipped with a 1200mAh rechargeable battery and a Type-C charging port.
- Auto-Shutdown Function: Includes a 15-minute auto-shutdown to conserve energy, which can be disabled for continuous measurement.
- شاته LCD سکرین: Provides clear readings even in low-light conditions.
4. ترتیب کول
4.1 د وسیلې چارج کول
The Neoteck RD670 comes with a built-in 1200mAh rechargeable battery. Before first use, or when the battery indicator shows low power, charge the device using the provided Type-C USB cable.
- Connect the Type-C end of the charging cable to the charging port on the side of the detector.
- د کیبل د USB-A پای د معیاري USB بریښنا اډاپټر (شامل نه دی) یا د کمپیوټر USB پورټ سره وصل کړئ.
- په سکرین کې د بیټرۍ شاخص به د چارج کولو حالت وښيي.

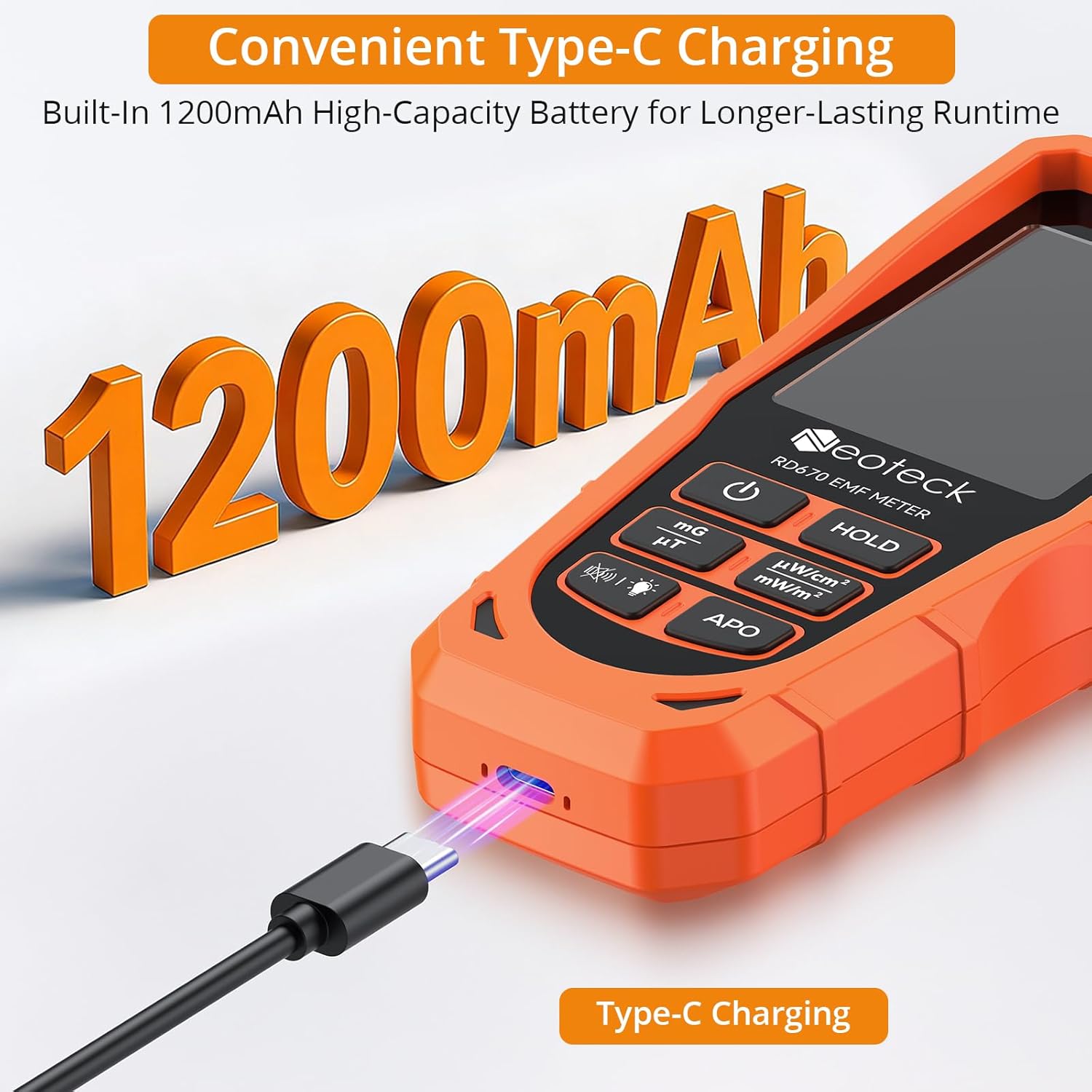

Image: The Neoteck RD670 EMF Detector connected to its Type-C charging cable.
4.2 بریښنا کول / بندول
- د بریښنا لپاره ، فشار ورکړئ او ونیسئ د بریښنا تڼۍ (
) until the screen illuminates. - د بریښنا بندولو لپاره فشار ورکړئ د بریښنا تڼۍ بیا تر هغه چې سکرین بند شي.
5. عملیاتي لارښوونې
۷.۱ اساسي اندازه ګیري
Upon powering on, the device will immediately begin measuring Electric Field (EF), Magnetic Field (MF), and Radio Frequency (RF) radiation. Readings for all three fields are displayed simultaneously on the backlit LCD screen.

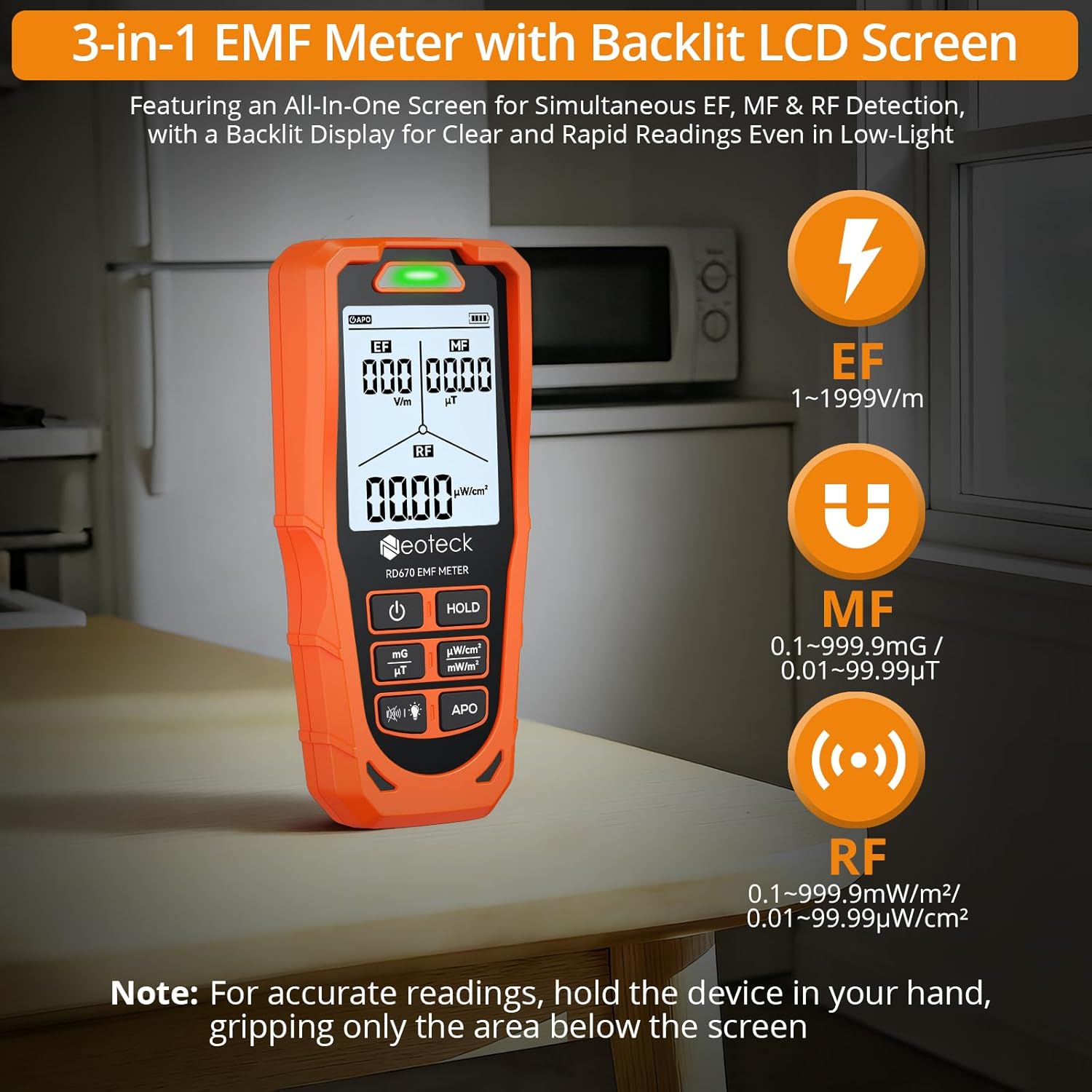

Image: The Neoteck RD670 EMF Detector showing simultaneous readings for Electric Field, Magnetic Field, and Radio Frequency.
5.2 د ښودلو پوهه
The screen is divided into three main sections for EF, MF, and RF readings. Units are displayed next to the numerical values.
- EF (Electric Field): Measured in V/m (Volts per meter). Range: 1-1999 V/m.
- MF (Magnetic Field): Measured in mG (milligauss) or µT (microtesla). Range: 0.1-999.9 mG / 0.01-99.99 µT.
- آر ایف (د راډیو فریکونسی): Measured in mW/m² (milliwatts per square meter) or µW/cm² (microwatts per square centimeter). Range: 0.1-999.9 mW/m² / 0.01-99.99 µW/cm².
5.3 Unit Switching (MF and RF)
- To switch MF units between mG and µT, press the mG/µT button.
- To switch RF units between mW/m² and µW/cm², press the mW/m²/µW/cm² button.
5.4 3-Axis Magnetic Field Detection
The device can detect magnetic fields along the X, Y, and Z axes, allowing for identification of the magnetic field's direction. The display will show the current axis being measured or a combined reading.
- ایکس محور: Represents the width direction of the detector.
- Y-محور: Corresponds to the height direction of the detector.
- Z-محور: Perpendicular to the detector's screen.

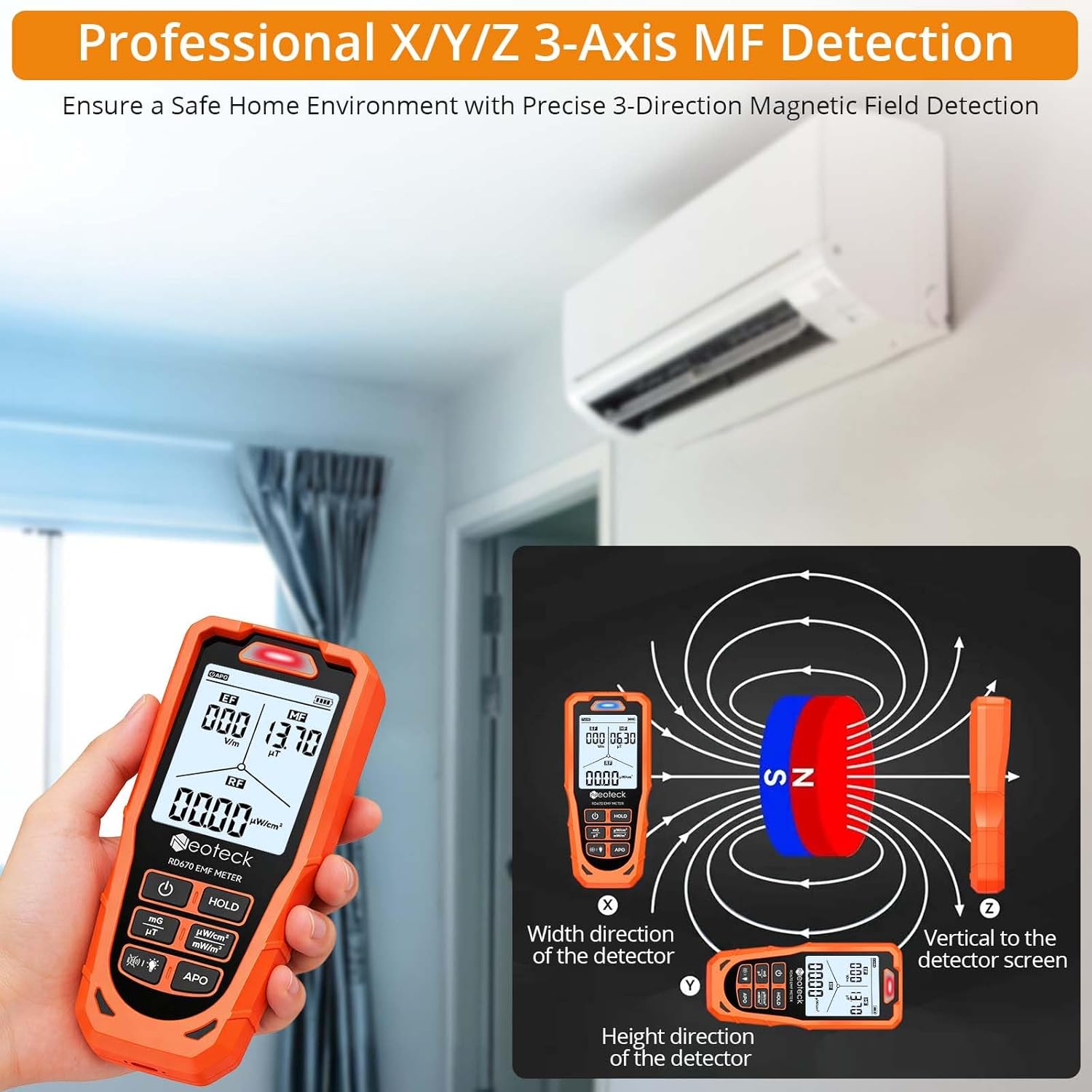

Image: Illustration of the 3-axis magnetic field detection capability of the Neoteck RD670 EMF Detector.
5.5 Visual and Audio Alarm
The detector provides immediate feedback on radiation levels through a tri-color LED and an audible buzzer.
- شنه LED: Low radiation levels.
- نیلي LED: Medium radiation levels.
- Red LED & Rapid Beeps: High radiation levels, exceeding safety thresholds.
د الارم حد:
- EF: 250 V/m
- MF: 5 µT / 50 mG
- RF: 50 mW/m² / 5 µW/cm²
Image: Visual representation of the alarm system and radiation level thresholds.
To mute the audio alarm, press the د خاموش تڼۍ (
).
5.6 Intelligent RF Recognition
The detector can identify and display specific types of RF signals:
- When a Wi-Fi transmission source is detected, the screen shows "WIFI/PHONE".
- When a microwave source is detected, it displays "MICROWAVE*".
- For mixed signals, it shows "MIXED".

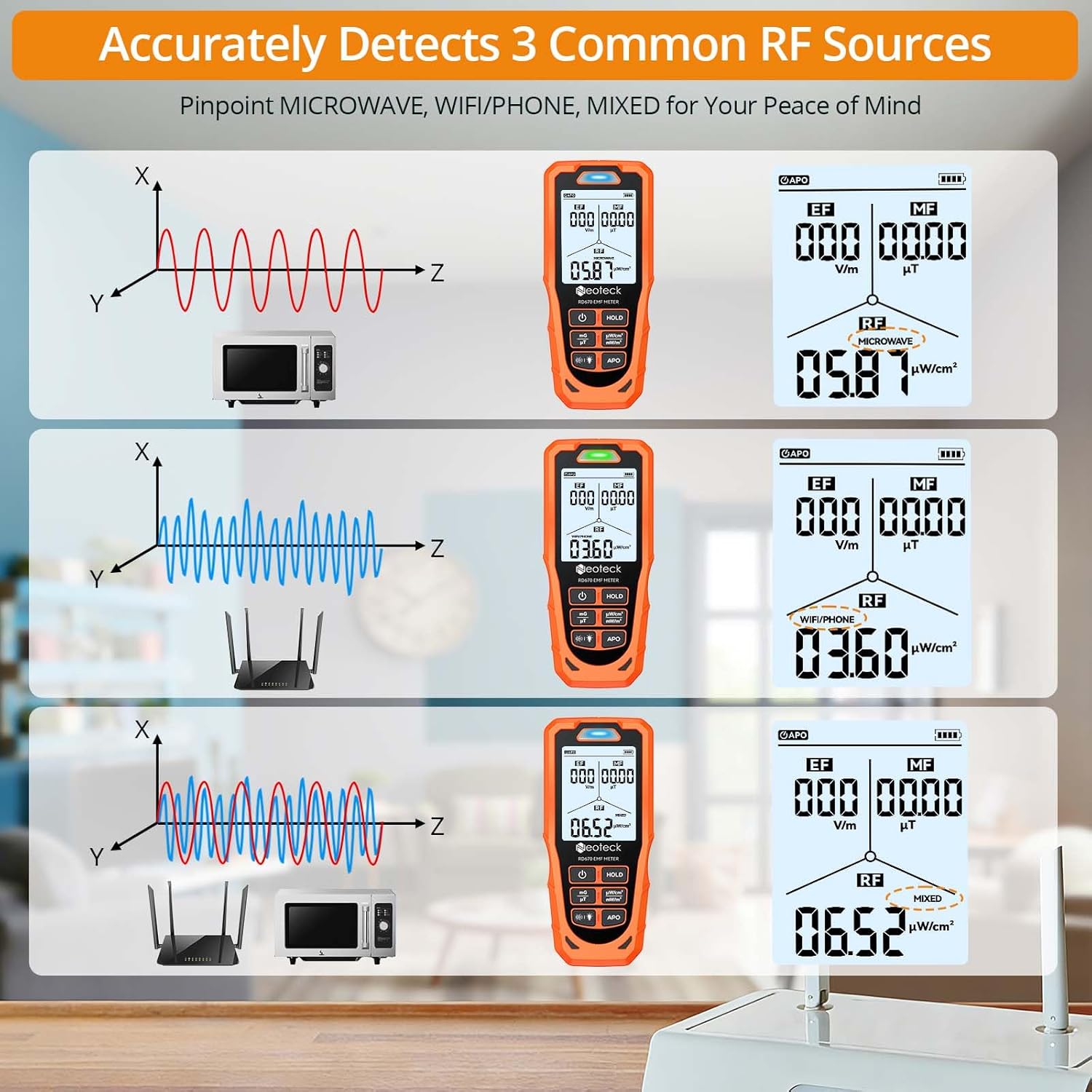

انځور: Examples of intelligent RF signal recognition on the detector's screen.
5.7 د ډیټا هولډ فعالیت
To freeze the current readings on the screen, press the د HOLD ت buttonۍ (
). Press it again to resume live measurement.
5.8 Auto Power-Off (APO)
The device has a 15-minute auto-shutdown function to save battery. To disable this feature for continuous measurement, press and hold the APO button (
) until the APO indicator on the screen disappears. Press and hold again to re-enable it.
6. ساتنه
- پاکول: د وسیلې د پاکولو لپاره نرم، وچ ټوکر وکاروئ. د کثافاتو پاکوونکي یا محلولونه مه کاروئ.
- ذخیره کول: Store the detector in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided storage bag for protection.
- د بیټرۍ پاملرنه: د بیټرۍ روغتیا ساتلو لپاره، حتی که وسیله په مکرر ډول نه کارول کیږي، بیټرۍ په منظم ډول چارج کړئ. د اوږدې مودې لپاره د بیټرۍ په بشپړه توګه چارج کولو څخه ډډه وکړئ.
- د اغیزو څخه ډډه وکړئ: وسیله د څاڅکو او قوي تاثیراتو څخه خوندي کړئ، کوم چې کولی شي داخلي برخو ته زیان ورسوي.
7. ستونزه حل کول
| ستونزه | احتمالي لامل | د حل لاره |
|---|---|---|
| وسیله فعاله نه ده. | ټیټ بیټرۍ. | د ټایپ-سي کیبل په کارولو سره وسیله چارج کړئ. |
| ناسم یا بدلون موندونکي لوستل. | Interference from other electronic devices; improper holding technique. | Move away from other electronics. Hold the device by the lower part, avoiding covering the sensors. |
| No audio alarm despite high readings. | Audio alarm is muted. | Press the Mute button to unmute the alarm. |
| وسیله په ناڅاپي ډول بندیږي. | Auto Power-Off (APO) function is active; low battery. | Disable APO by holding the APO button. Charge the device if battery is low. |
8. مشخصات
| د ماډل شمیره | RD670 |
| Measuring Range (EF) | 1-1999 V/m |
| Sensitivity (EF) | 1 V/m |
| Measuring Range (MF) | 0.1-999.9 mG / 0.01-99.99 µT |
| Sensitivity (MF) | 0.1 mG / 0.01 µT |
| Measuring Range (RF) | 0.1-999.9 mW/m² / 0.01-99.99 µW/cm² |
| حساسیت (RF) | 0.1 mW/m² / 0.01 µW/cm² |
| د اندازه کولو دقت | ±5% |
| بانډ ویت | 40Hz-10GHz |
| بیټرۍ | ۲۰۰۰mAh لیتیم فلز (شامل دی) |
| د چارج کولو بندر | ټایپ-سي |
| د چارج ننوت | 5V---500mA |
| د بریښنا بند | ۱۵ دقیقې (غیر فعال کیدی شي) |
| د عملیاتي حرارت درجه | -10 ℃ تر 60 ℃ |
| عملیاتي رطوبت | <80٪ RH |
| د محصول ابعاد | 5.71 x 2.64 x 1.06 انچه (144 x 67 x 27 mm) |
| د توکي وزن | 4.9 اونس |
Image: Detailed specifications and package contents of the Neoteck RD670 EMF Detector.
9. تضمین او ملاتړ
Neoteck products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided on the official Neoteck webسایټ یا خپل پرچون پلورونکي سره اړیکه ونیسئ. مهرباني وکړئ د تضمین ادعاوو لپاره د پیرود ثبوت وساتئ.
د نورو مرستو لپاره، لیدنه وکړئ Neoteck Store on Amazon.
