BSIDE OT5 Mini Digital Oscilloscope User Manual

پیژندنه

The BSIDE OT5 Mini Digital Oscilloscope is a compact and portable instrument designed for basic electrical measurements and waveform analysis. Featuring a 50 MHz bandwidth and a 200 MSa/s real-time sampling rate, it provides clear and detailed waveform displays on its 3.2-inch color LCD. Its intuitive interface and robust design make it suitable for various applications, including electronics, audio, and automotive diagnostics.

په بکس کې څه دي

په احتیاط سره محتويات خلاص کړئ او ډاډ ترلاسه کړئ چې ټول توکي شتون لري:

• 1 x BSIDE OT5 Mini Oscilloscope
• 1 x BNC Oscilloscope Probe
• 1 x USB C چارج کولو کیبل
• 4 x Color Rings (for probe identification)
• 1 x د بار وړلو قضیه
• 1 x Alignment Screwdriver
• ۱ x د کارونکي لارښود (انګلیسي)

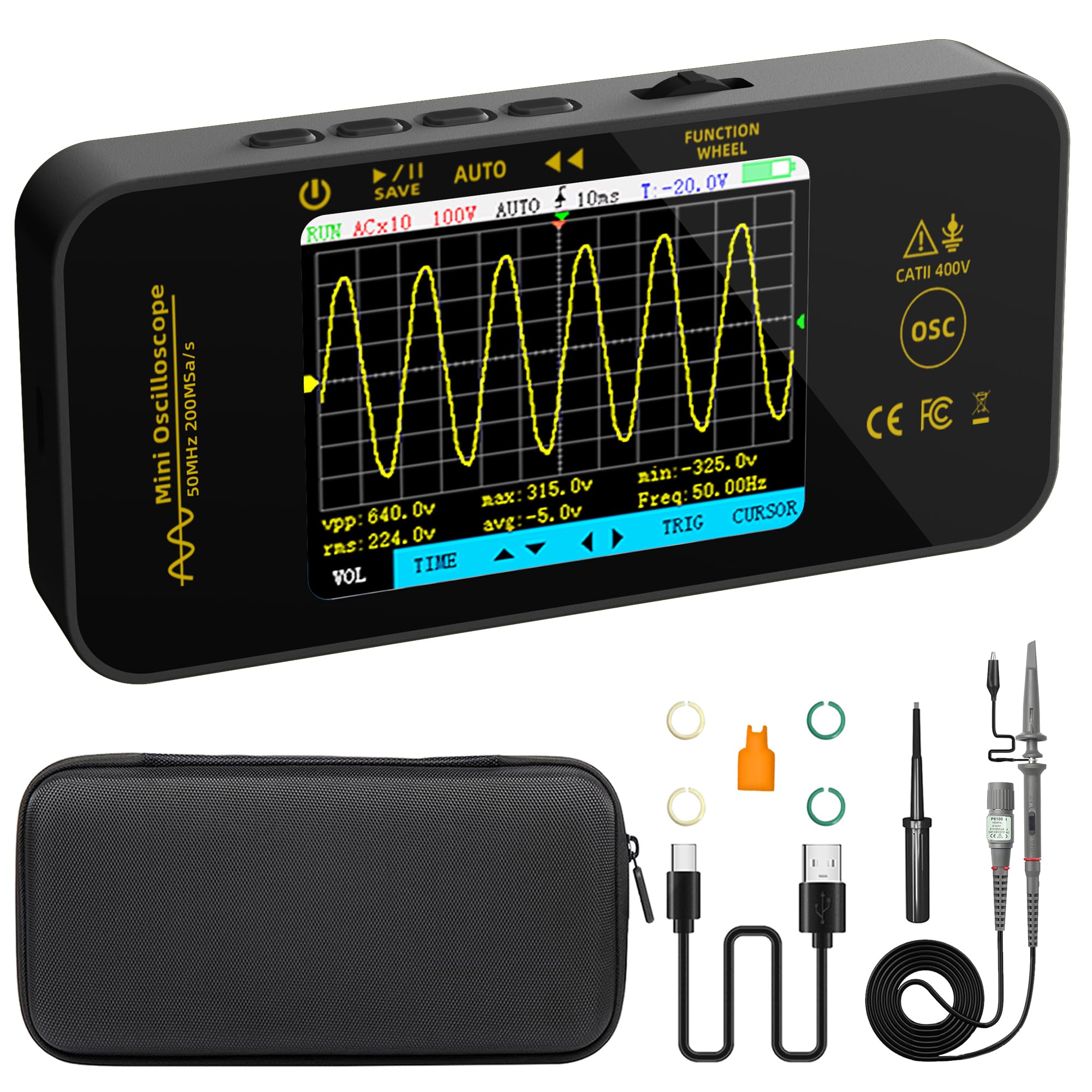

Image: All components included in the BSIDE OT5 Mini Oscilloscope package.

محصول پای ته ورسیدview

The OT5 Mini Oscilloscope features an ultra-slim and compact design, making it highly portable for on-the-go measurements. Its dimensions are approximately 130.1 x 64.1 x 23 mm, and it weighs only 143g.

Image: The compact BSIDE OT5 Mini Oscilloscope, easily held in one hand.

ښودل

The device is equipped with a 3.2-inch full-viewing angle TFT color LCD, providing bright and clear waveform readings from various perspectives. This display ensures that all measurement data and waveforms are easily visible.

Image: The 3.2-inch full-viewing LCD of the oscilloscope displaying a waveform.

کنټرولونه

The oscilloscope features an intuitive interface with four main buttons for essential functions and a side rotary wheel for quick adjustments, enhancing operational speed and ease of use.

چمتو کول

د وسیله چارج کول

Before first use, fully charge the oscilloscope using the provided USB C charging cable. Connect the cable to the device's USB C port and a standard USB power adapter (not included). The built-in 1200 mAh rechargeable lithium-ion battery provides over 8 hours of continuous operation when fully charged.

انځور: داخلي view د ۱۰۰۰mAh چارج وړ بیټرۍ روښانه کول.

د تحقیقاتو نښلول

Connect the BNC oscilloscope probe to the BNC connector on the device. Ensure a secure connection. The probe can be set to X1 or X10 attenuation. Adjust the oscilloscope's settings to match the probe's attenuation for accurate measurements.

عملیاتي لارښوونې

بریښنا کول / بند کول

Press and hold the power button to turn the oscilloscope on or off.

اساسی اندازه کول

The device supports both automatic and manual waveform capture. For quick analysis, use the auto-ranging function. The oscilloscope can capture various waveform types, including sinusoidal, square, triangular, sawtooth, and more.

Image: The oscilloscope displaying a captured waveform with key measurement data.

د محرک حالتونه

Select from Automatic, Single, or Normal trigger modes to stabilize repetitive waveforms or capture single-shot events. The trigger can be set to rising or falling edge.

Time Base and Vertical Sensitivity

Adjust the horizontal time base (10 ns/div to 20 s/div) and vertical sensitivity (20 mV/div to 10 V/div) to properly scale the waveform on the screen. The device supports automatic time base and amplitude calibration.

Cursor Measurements

Utilize vertical and horizontal cursors to perform precise measurements on specific segments of the waveform, such as voltage differences or time intervals.

Mathematical Operations (FFT)

The oscilloscope supports mathematical operations, including Fast Fourier Transform (FFT), for frequency domain analysis.

د معلوماتو خوندي کول او لیږدول

Waveforms can be saved with a single click and viewed directly on the unit or transferred to a PC for further analysis. The device supports data retention and transfer.

انځور: Examples of various waveforms measured and displayed by the oscilloscope.

ساتنه

د بیټرۍ پاملرنه

To prolong battery life, avoid fully discharging the device frequently. Recharge the battery when the low battery indicator appears. Store the device in a cool, dry place if not used for extended periods.

پاکول

Clean the device with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the casing یا سکرین.

د فرم ویئر تازه معلومات

Firmware updates may be released periodically to improve performance or add new features. Please contact BSIDE support for information on available firmware updates and instructions on how to apply them.

د ستونزو حل کول

If you encounter issues with your BSIDE OT5 Mini Oscilloscope, consider the following:

• وسیله نه چلیږي: Ensure the battery is sufficiently charged. Connect the USB C charging cable and allow it to charge for a period before attempting to power on again.
• هیڅ څپې بڼه نه ده ښودل شوې: Check that the probe is correctly connected to both the device and the circuit under test. Verify the probe's attenuation setting matches the oscilloscope's input settings. Adjust the time base and vertical sensitivity to bring the waveform into view.
• Unstable waveform: Adjust the trigger level and trigger mode (Automatic, Single, Normal) to stabilize the waveform. Ensure the trigger edge (rising/falling) is correctly selected.
• ناسم اندازه ګیري: Perform an auto-calibration of the time base and amplitude. Ensure the probe is properly calibrated and connected.

The device features intelligent anti-burn and overload protection to prevent damage from incorrect input. If issues persist, contact customer support.

مشخصات

تضمین او ملاتړ

For warranty information, technical support, or inquiries regarding firmware updates, please contact BSIDE customer service. Refer to the contact details provided with your purchase or visit the official BSIDE webد مرستې لپاره سایټ.
